Electric Motors

We provide our customers with a wide assortment of high quality Cheese Winder Motors that is in huge demand in the market. High-Efficiency winder motors with extended shafts From 90watt motors to 250watt motors. Special Motors are made as per customer requirements. Made using supreme grade raw material, all the Cheese Winder Motors in our range are quality tested on various parameters before final dispatch. Efficiency, longer service life and low maintenance are some of the striking attributes of our products. Our these products are available at industrial leading price.

Specifications

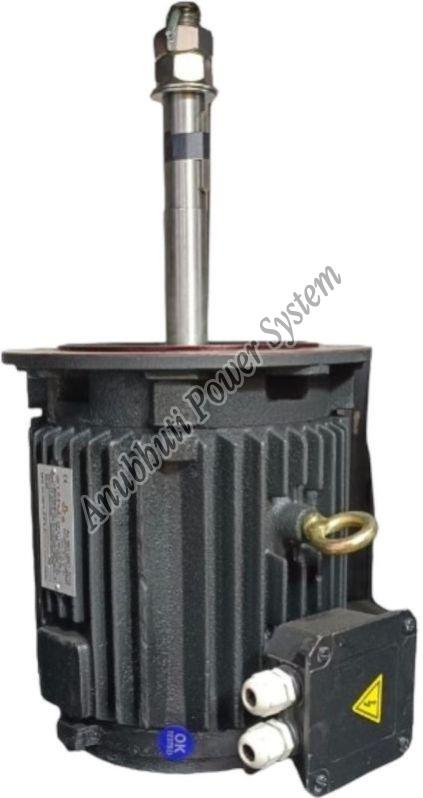

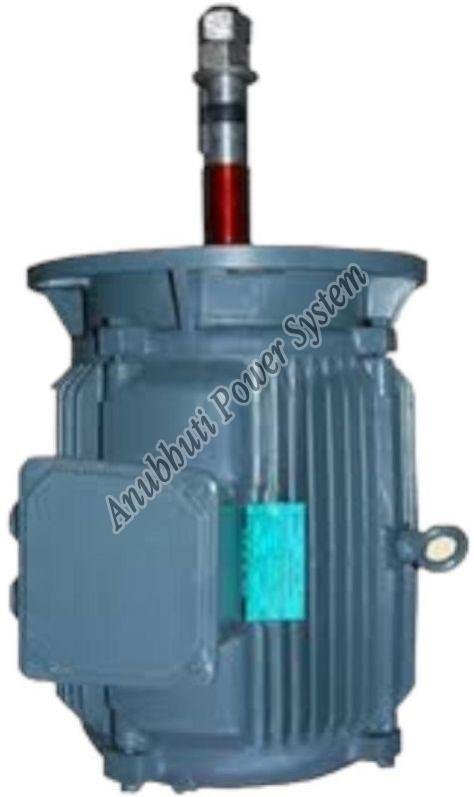

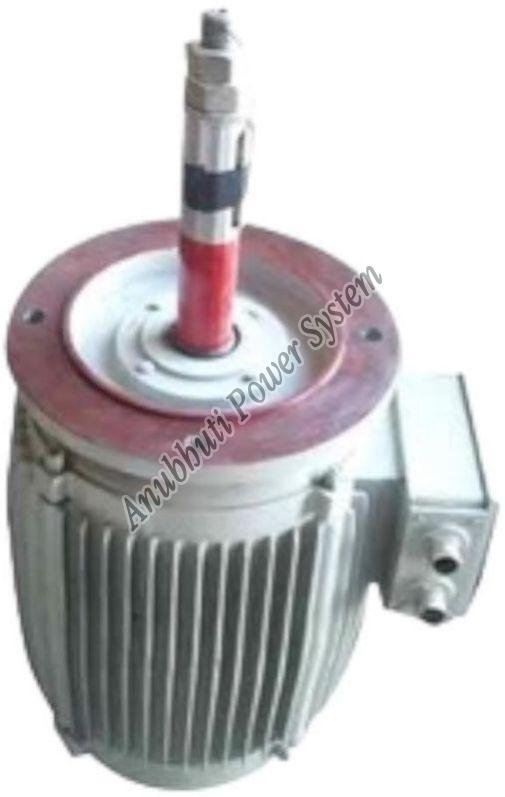

• Concept: These motors are especially designed for cooling tower Fans for continues running in humidity area.
• Range: Our cooling tower motor range 0.25 to 10 hp. Frame 71 to 160L.
• Motors are flange mounting with IP-55 Degree of protection. Supply 415(+- 5%) voltage and frequency 50Hz. (+-3%) combined +-5%. Motor available in 4, 6, 8, 10 and 12 pole. On customer request we are also to able supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60.
• Performance: Motor performance conforms to IS: 325.
• Mounting: Mounting V1 shaft downward position Flange B-5 as per IS 2223.
• Duty & Insulation: Insulation class “F” with constant duty (s1) Cooling tower motor design for Working S1Duty. For continues working.
• Shaft and Bearing: Our cooling tower Motor relative humidity up to 90%.
• Cooling tower Motor Shaft is Mead by stainless steel material AISI-410. Nut and washer are made for stainless steel AISI-202. It can make protection against corrosion. Motor shaft extended so cooling fan fitted properly.

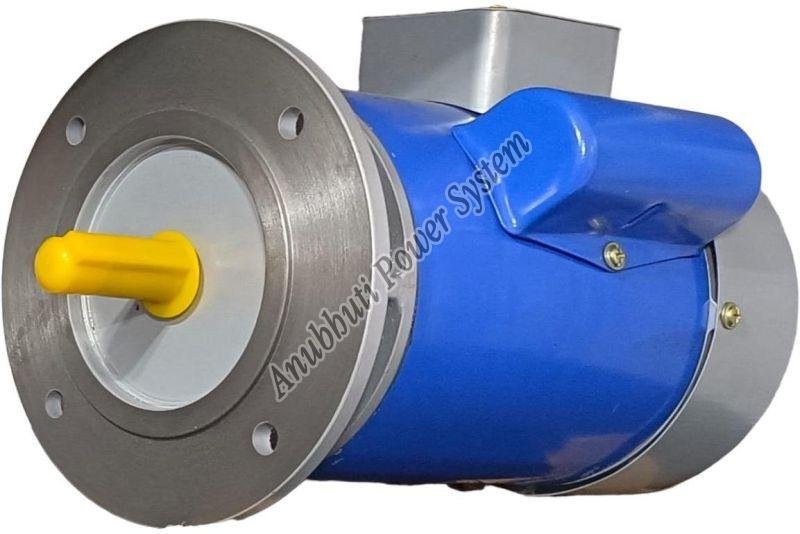

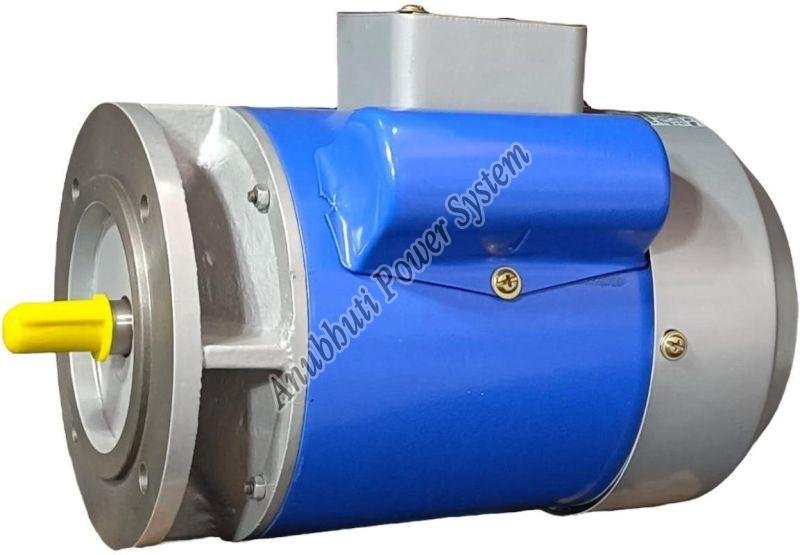

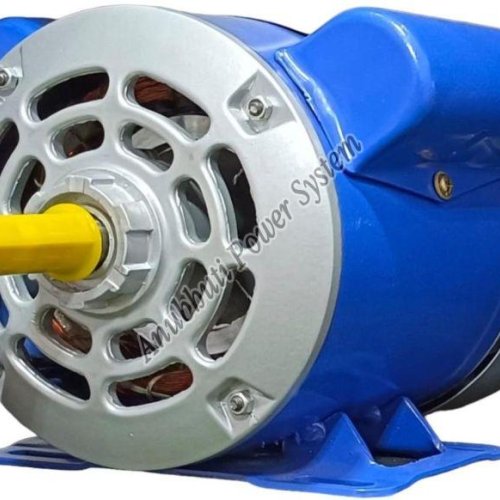

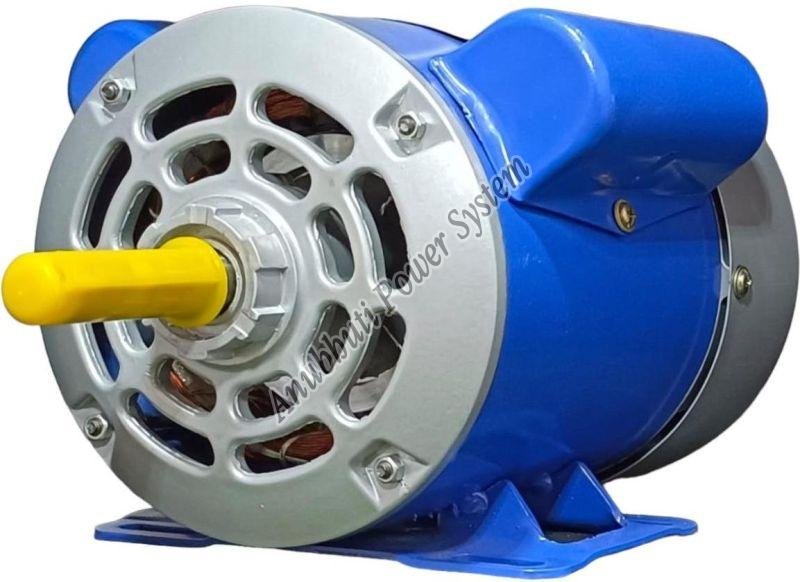

Specifications

• Range: 0.25 HP to 10 HP (0.18kW to 7.5 kW)
• 63 Frame to 160L frame in 2, 4 & 6 pole.
• Voltage: Motor are design for 215 volts +- 5% 50 Hz. +- 3% Supply (on customer request we are also able to supply motor in 110 volts on 60 Hz Also)
• Mounting: Foot-Flange-Face ( B3 / B5 / B14 )
• Insulation: Motor is provided with class “B” insulation. Class “F” can supply on request of customer.
• Ratings: All Standard single phase Motors are continuous (S1) rated to comply with performance standards.
• Design: Capacitor start induction run motors with high starting torques suitable for use in machine tools, small compressors, booster pumps, atta chakki, etc. Where high lord inertia and or frequent staring or stopping is involved. Resistant start induction run motor with moderately high starting torques ideally suited for optimum performance in applications like commercial juicers, industrial sewing machine, surgical pumps etc.

Range

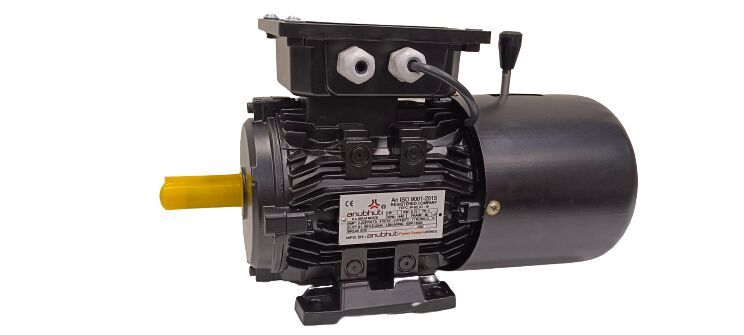

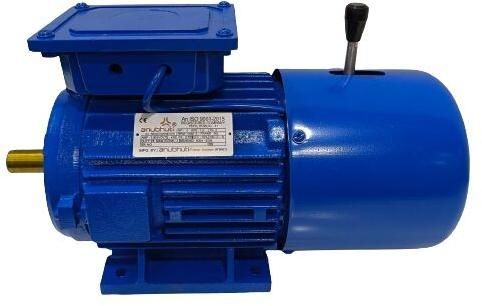

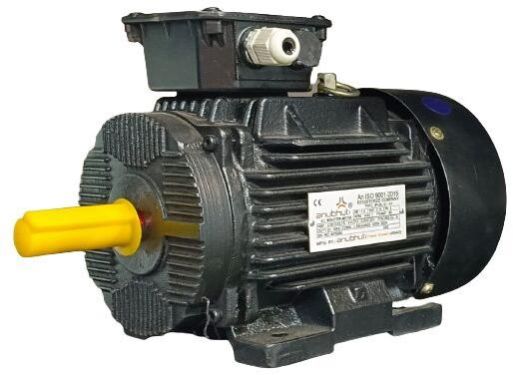

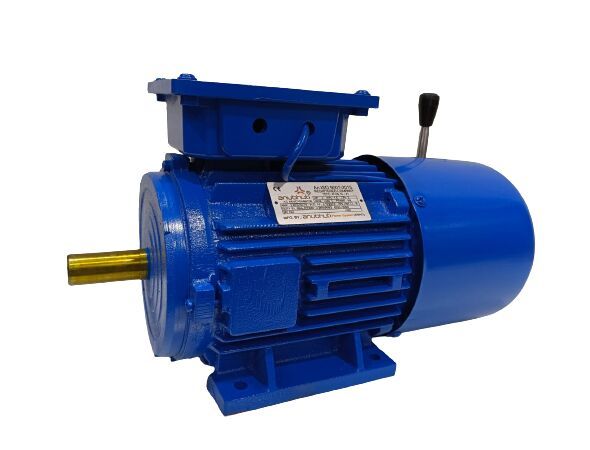

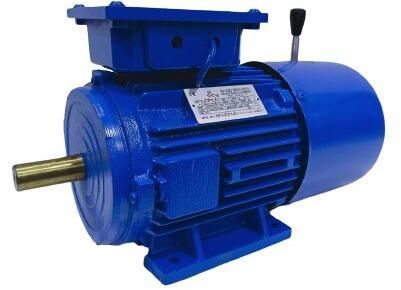

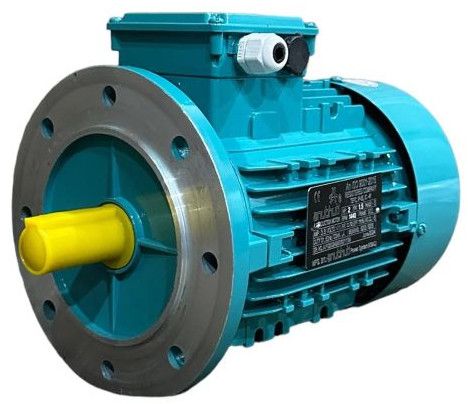

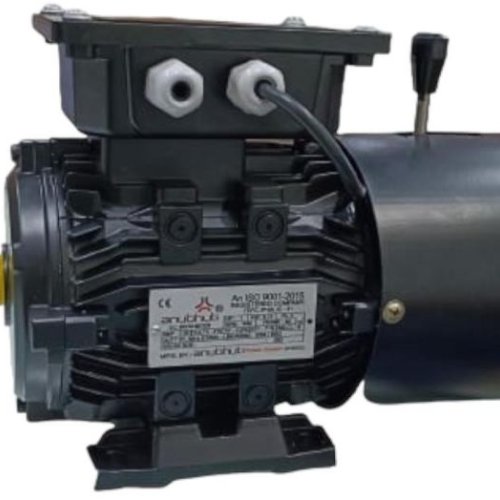

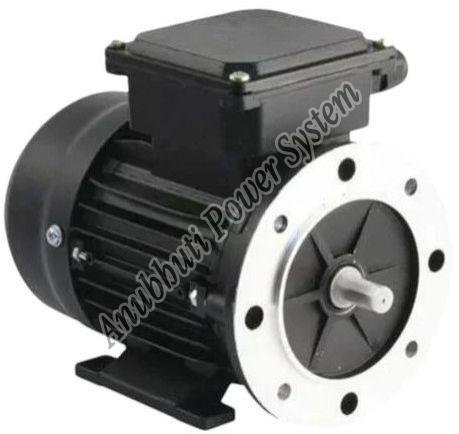

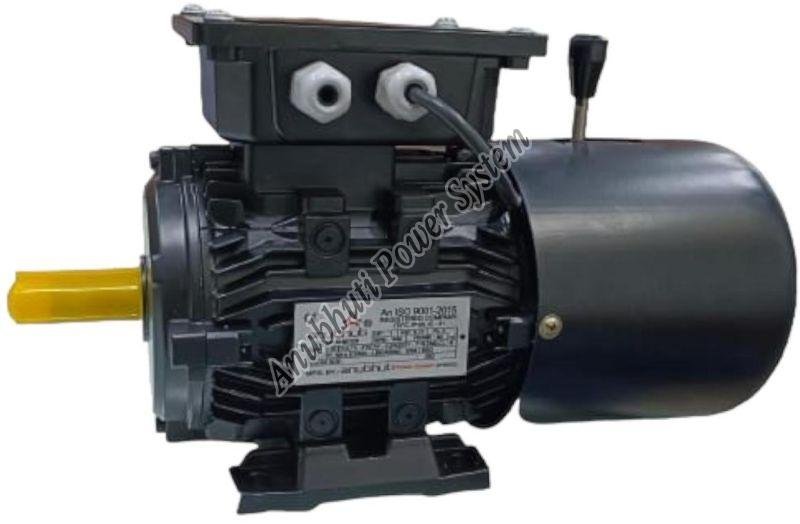

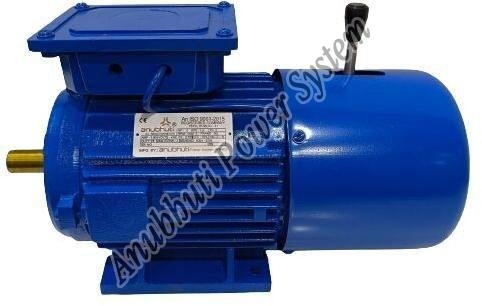

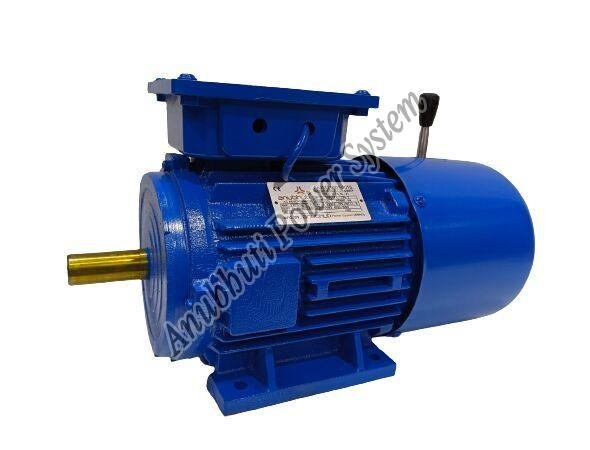

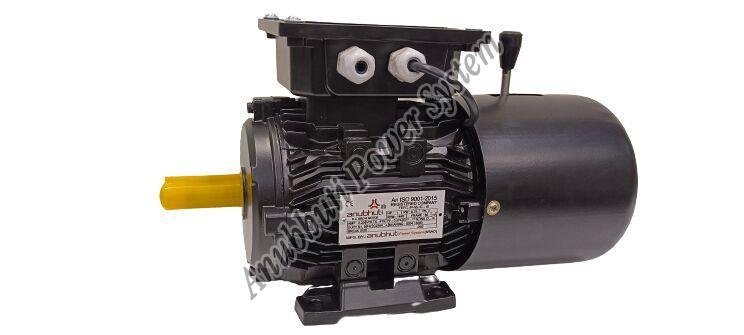

• Three phase: – 0.5H.P. to 10 H.P. ( 0.37 to 7.5 Kw.) In 3000, 1500, 1000 & 750 Rpm with A.c. & D.c. brake frame 71 to160L on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60.
• Singe phase: 0.25 H.P. to 3 H.P. In 3000, 1500, 1000 Rpm with A.c.& D.c. brake frame 63 to 112M
• Mounting: Foot-Flange-Face
• Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able supply motor in 220, 380, 460, 525volts on HZ. 50 or 60 )
• Insulation: Motor supply with class F insulation as a standard feature. Also, supply H on request of a customer at extra cost.

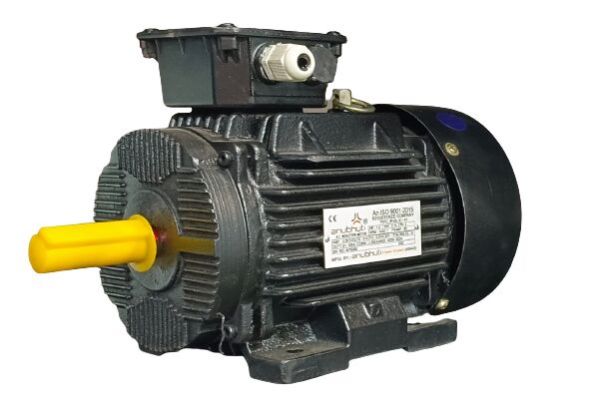

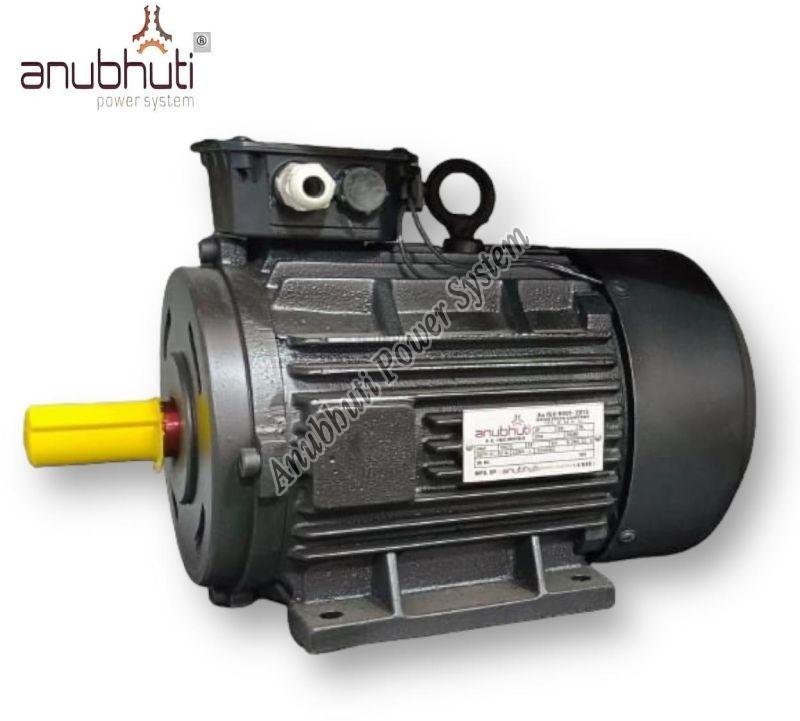

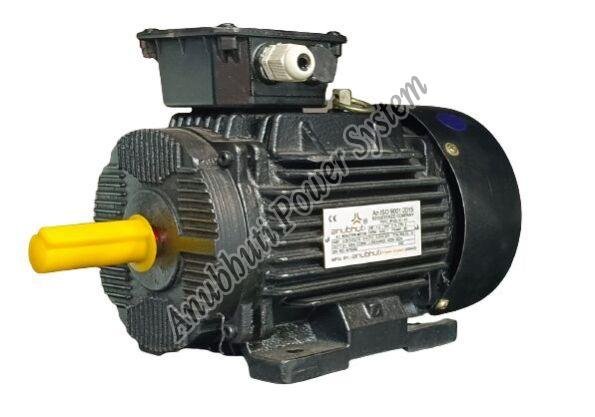

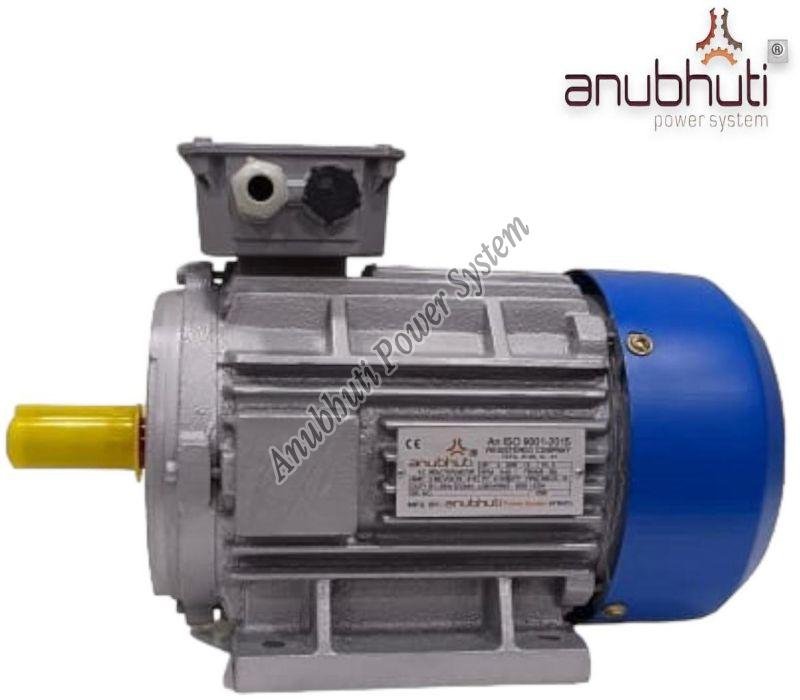

Anubhuti Power System offers the best dual speed motor. We are a recognized dual speed motor supplier in India.

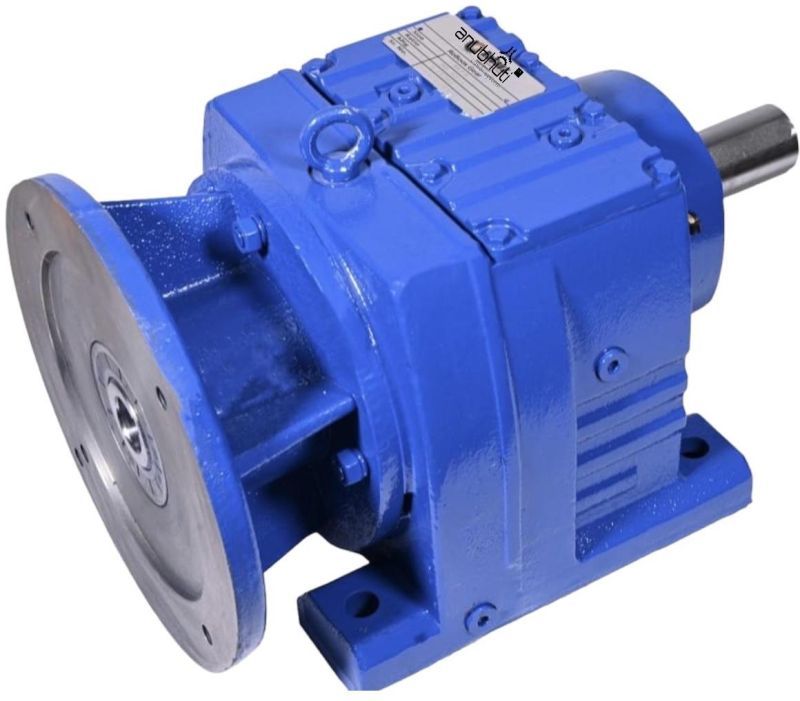

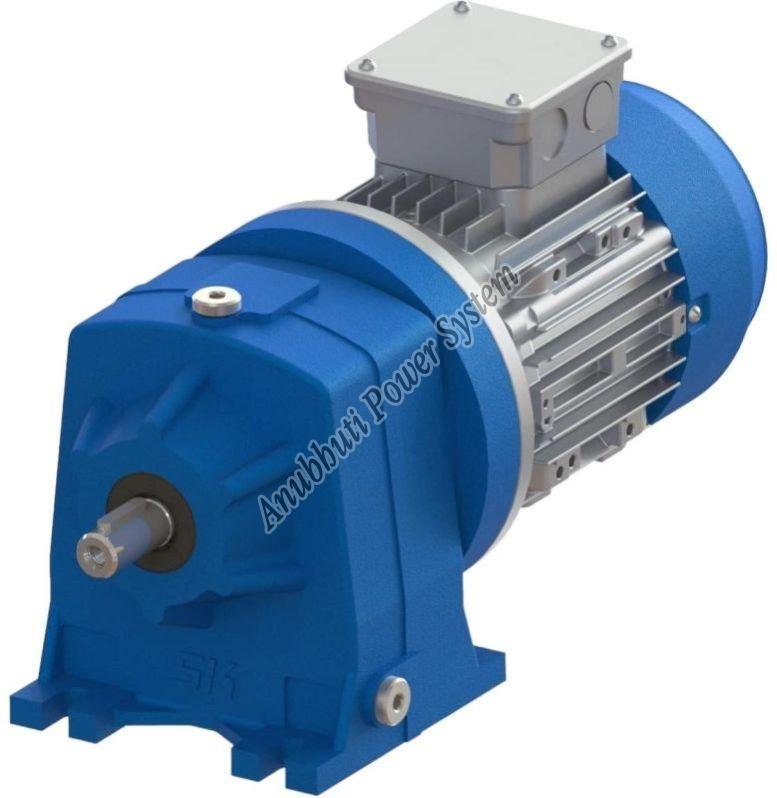

Unlike other basic electrical motors, dual motors are developed in high voltage which makes it easier to run in machines where multiple speeds are required. In addition to the dual motors, we also offer a dual brake motor and dual-speed gear motor.

Rotor – The rotor which we used to make dual electric motors are made of aluminium die-cast. Since our motors are dynamically balanced, it makes less noise and vibration. As a result, it requires less maintenance.

Shaft– The end part of dual motors is nothing but the shaft, which uses high carbon steel to develop. We accept premium carbon steel material from our top clients to make sure that the steel is strong enough to minimize deflection and provide maximum efficiency.

Application

Dual speed motor has its application in various industrial fields. It is mostly used in the lift, construction, food equipment, chemical industries, crane, pharmaceuticals, and ceramic industries.

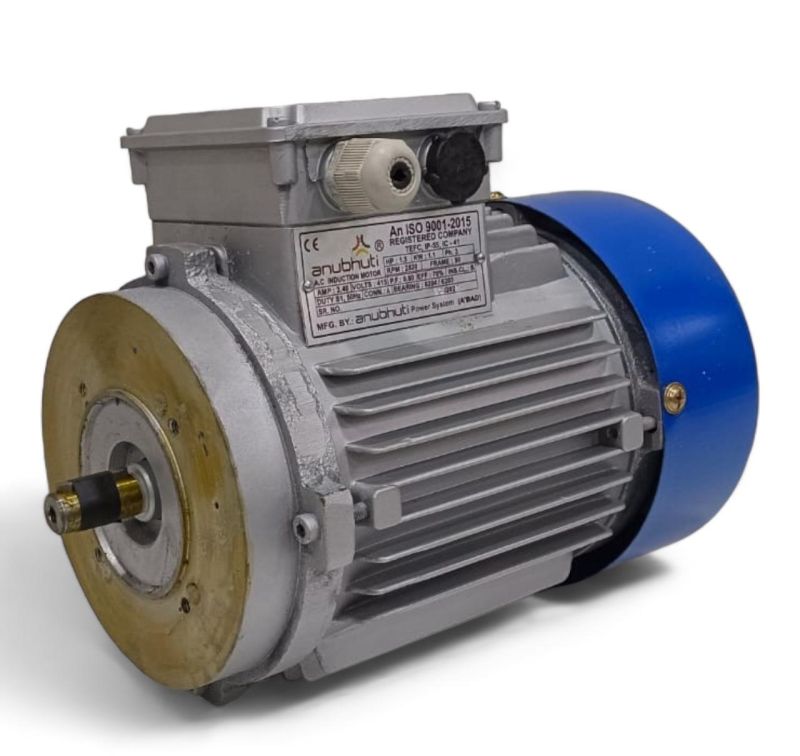

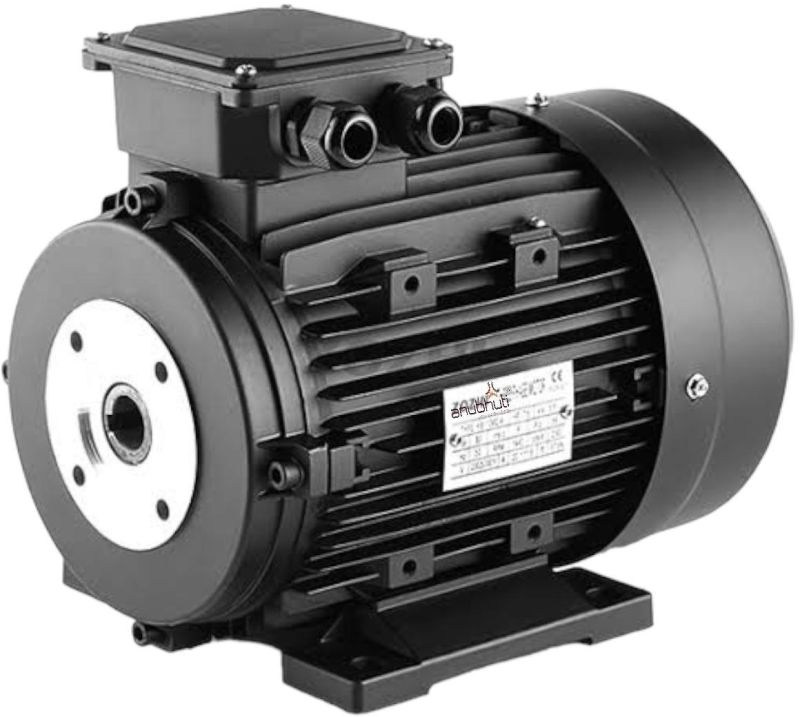

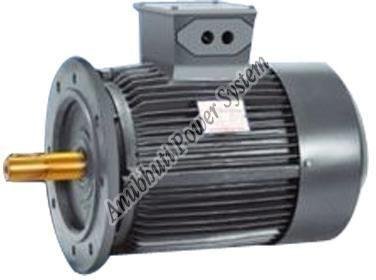

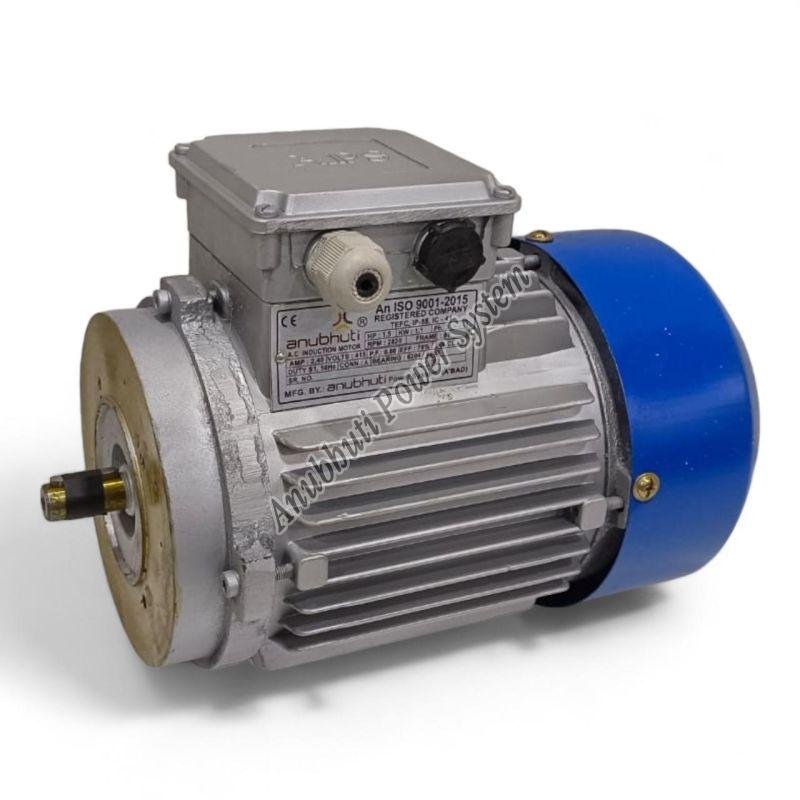

Anubhuti Power System is the best face-mounted motor supplier in India. Face Mounted Motor is designed with a rugged flange for mounting purposes. These three-phase electric motors are widely found in their applications in various industrial and agricultural sectors.

We offer this face-mounted motor to diverse specifications as per the demands of clients. Our customers can avail of a variety of face-mounted motors in different enclosures, voltages, speeds, mounting configurations and supremacy of performance with maintenance-free running life.

We manufacture our products using good quality raw materials that are sourced from the best dealers and distributors.

Contact us and get the best products from us today.

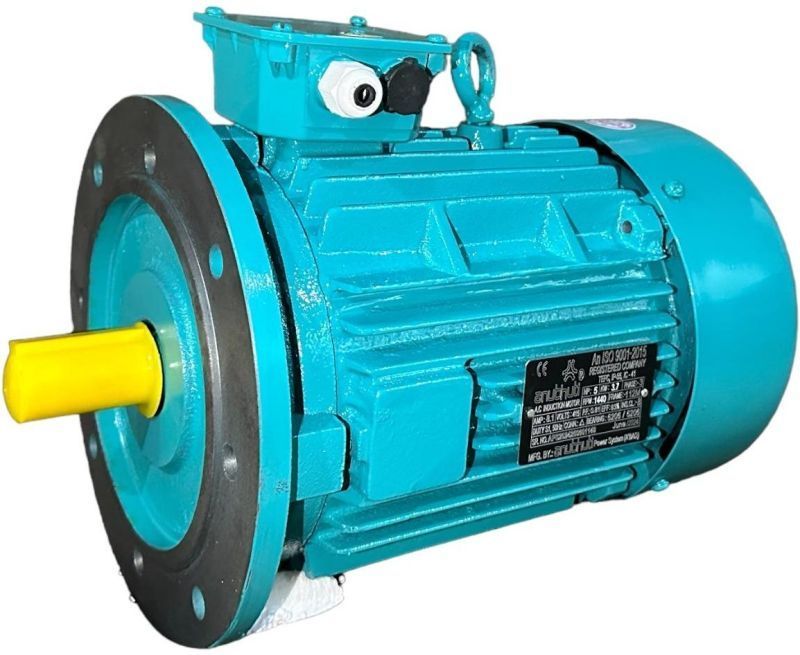

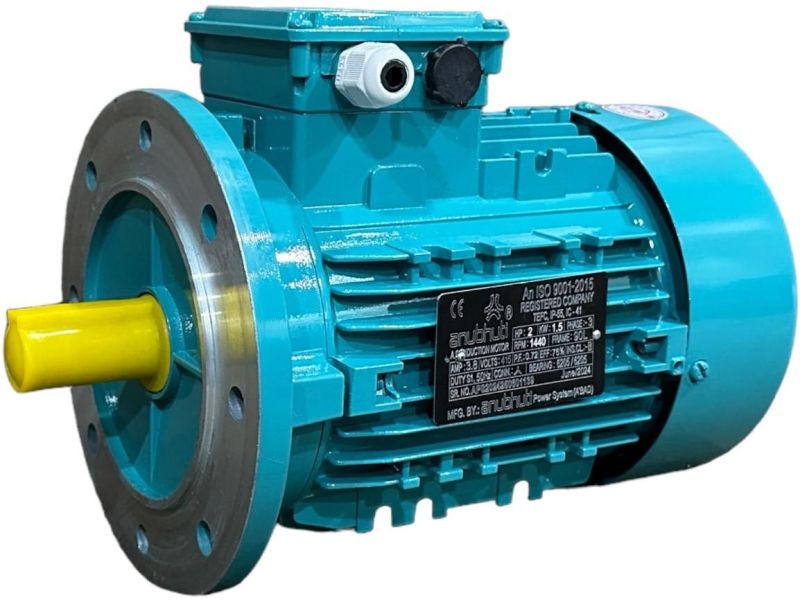

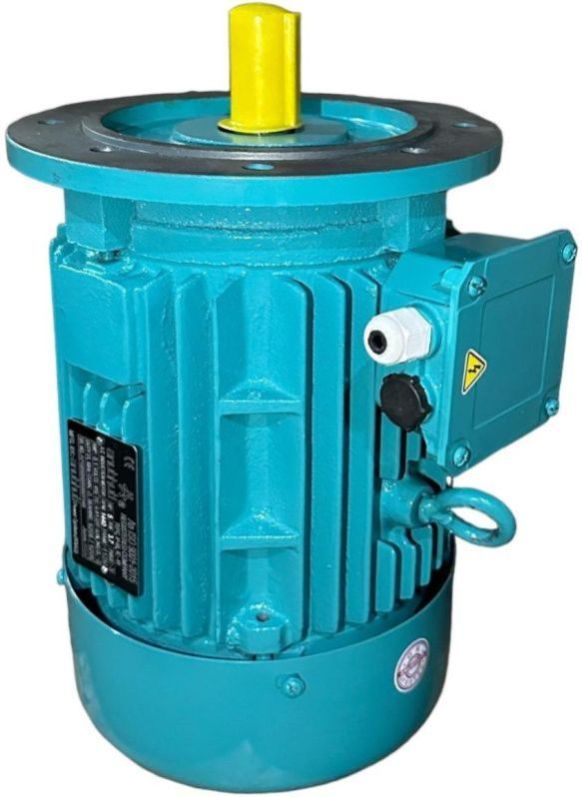

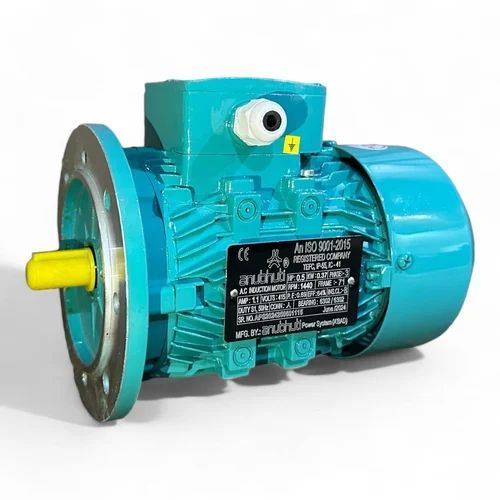

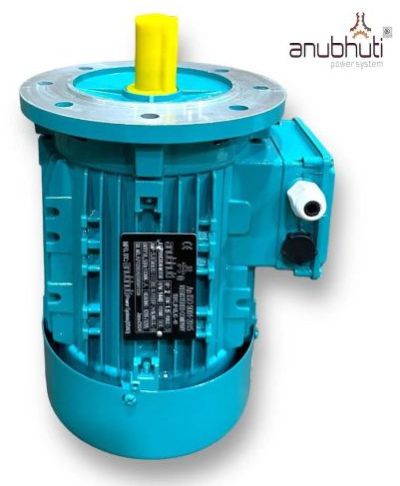

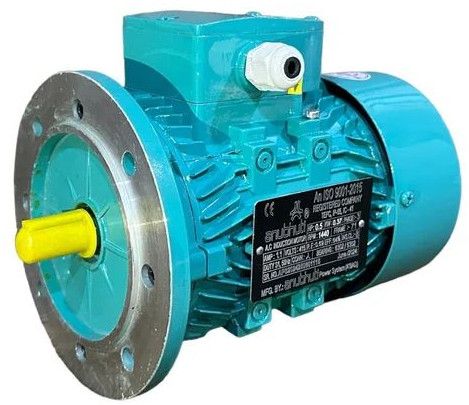

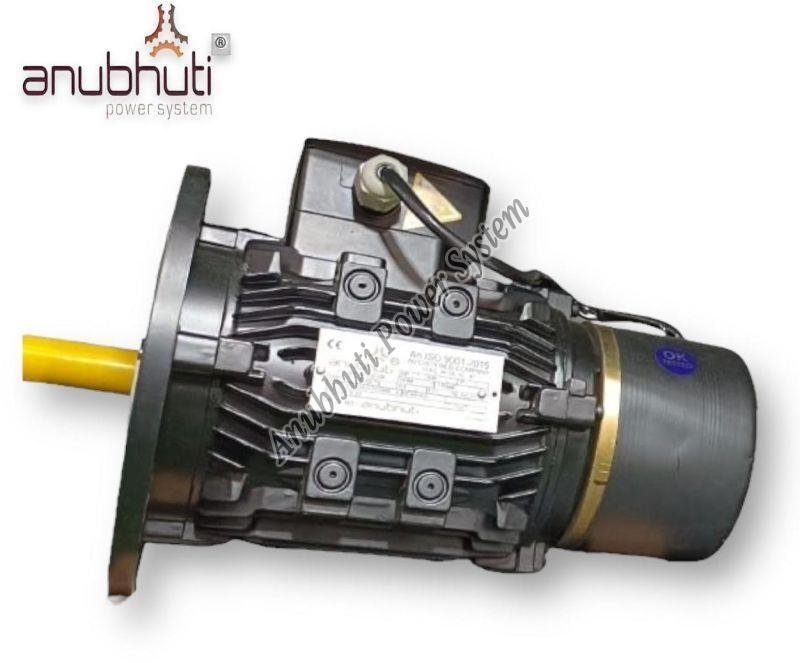

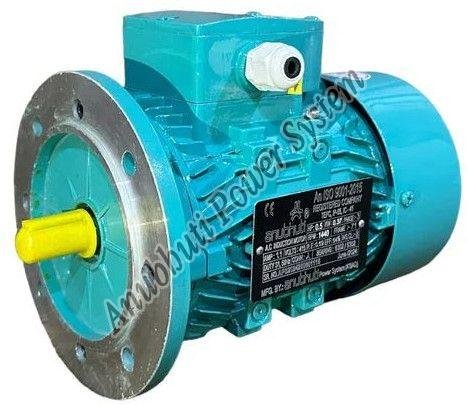

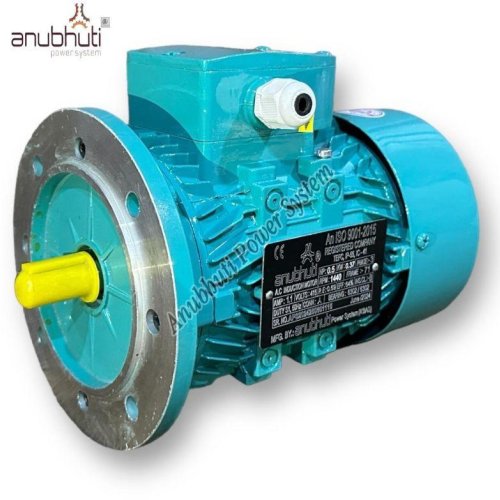

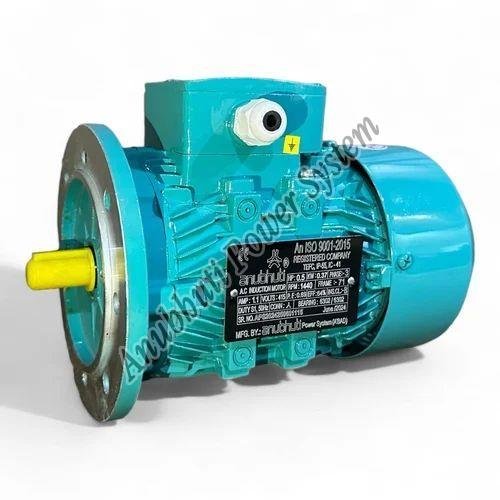

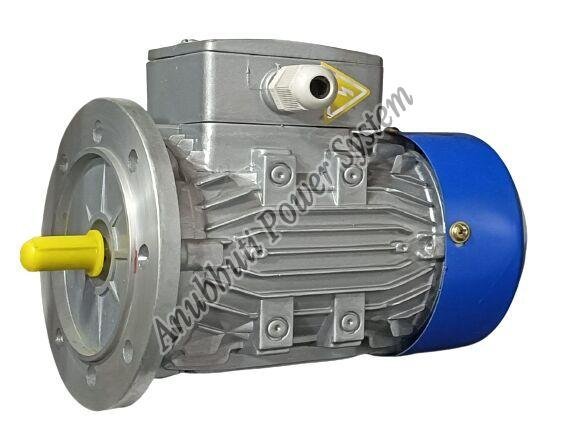

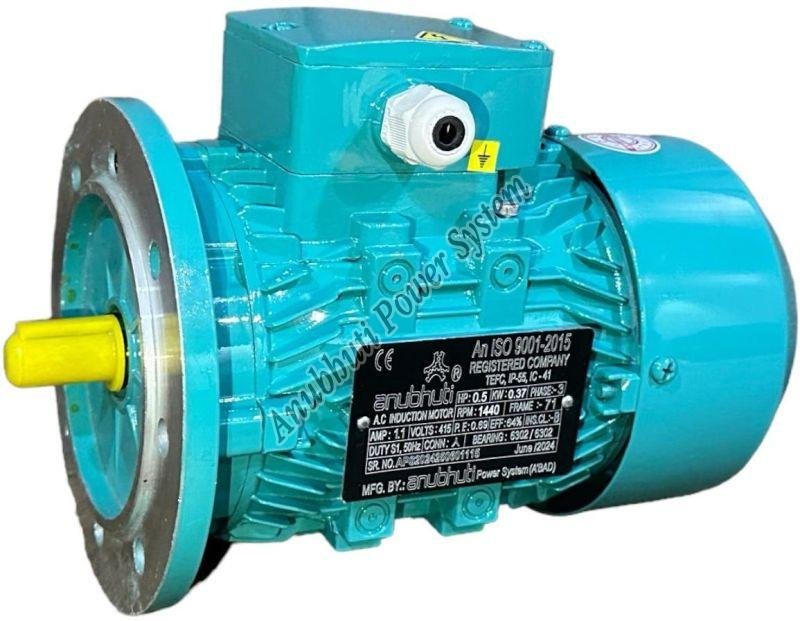

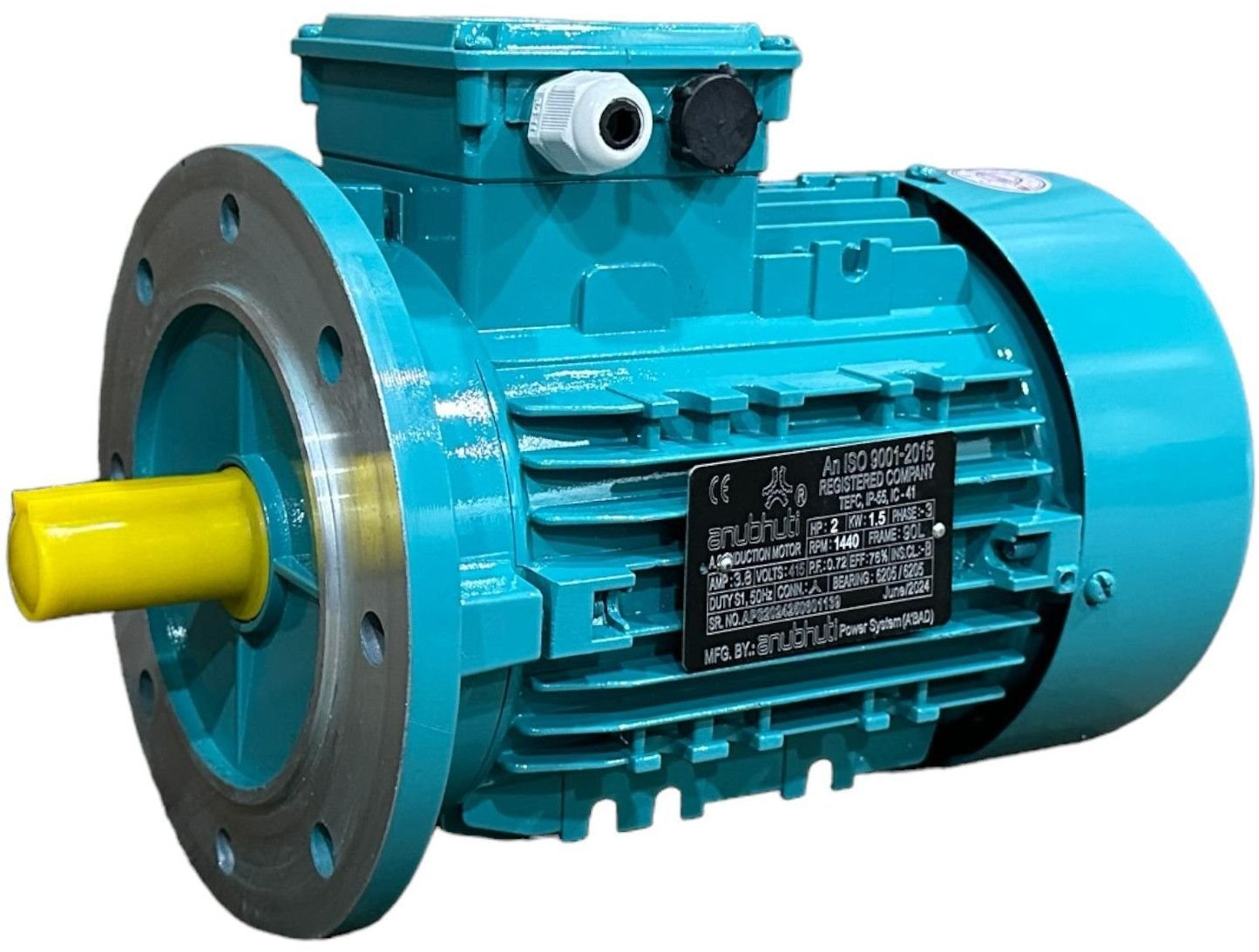

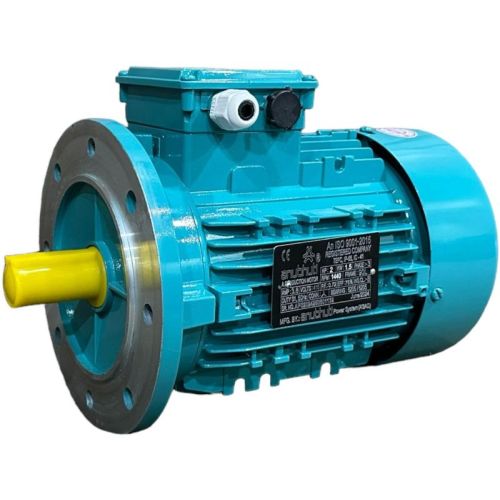

Anubhuti Power System is the best flange motor manufacturer in Gujarat. Our organization is prominently engaged in offering a comprehensive range of Flange Mounted Induction Motor. Further, special mounting of V1 and V3 can be provided, if required. We offer these products to our customers at reasonable prices.

Features:

High performance

Smooth operation

Low maintenance cost

Robust construction

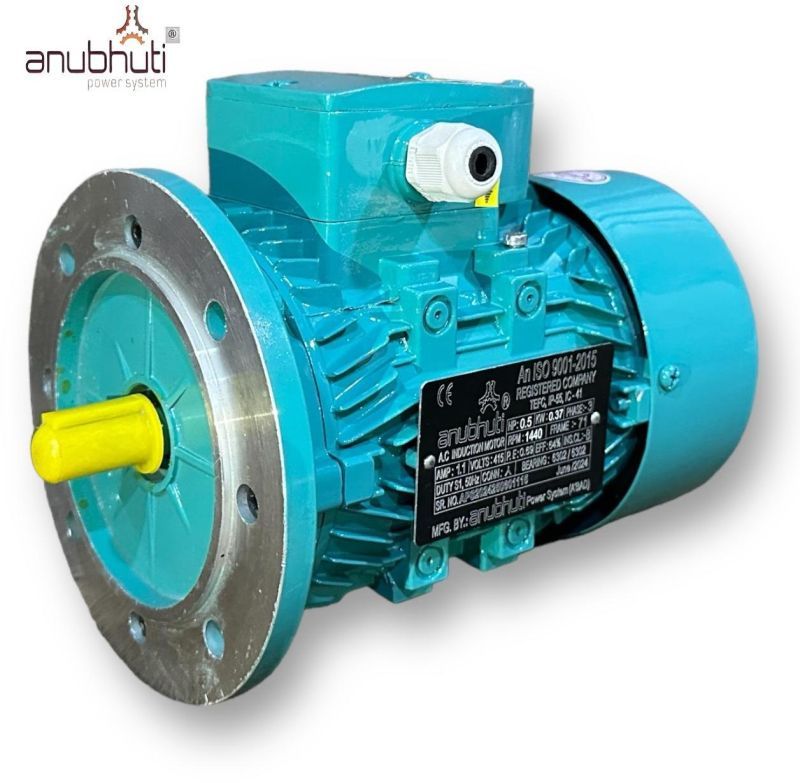

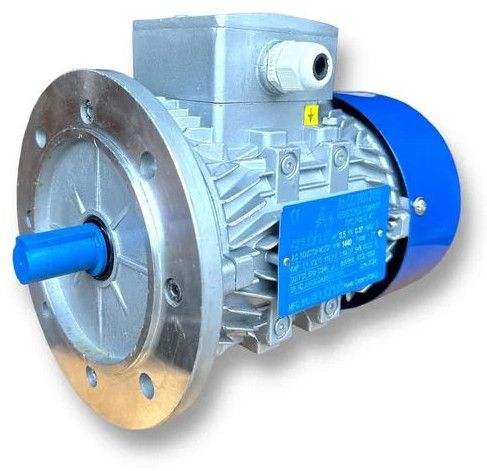

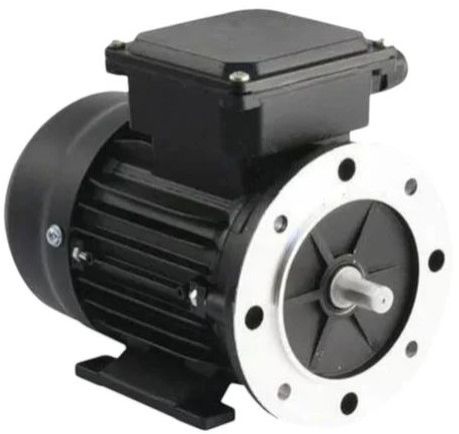

We are counted among the well-known Manufacturers and Suppliers of Flange Type Motor from Gujarat (India). Flange Type Motor, offered by us, is appreciated for its excellent performance, high efficiency, longer service life and low maintenance cost.

Compliant with the industry-stated norms & standards, our Flange Type Motor is widely demanded across the world. We quote nominal prices and promise timely deliveries.

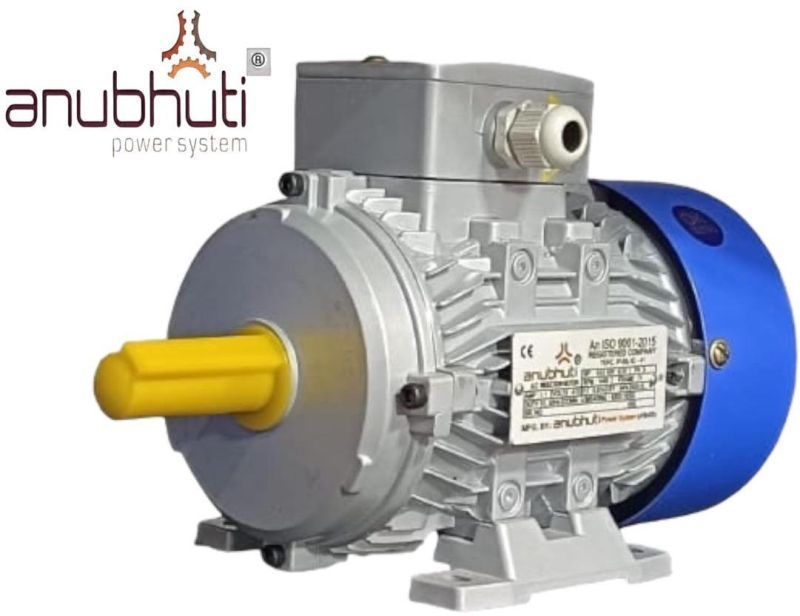

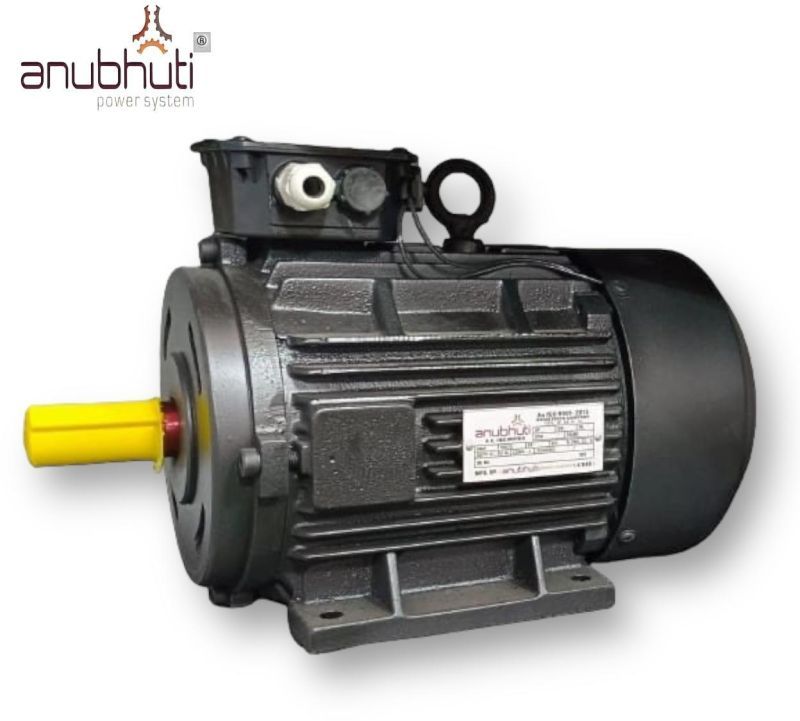

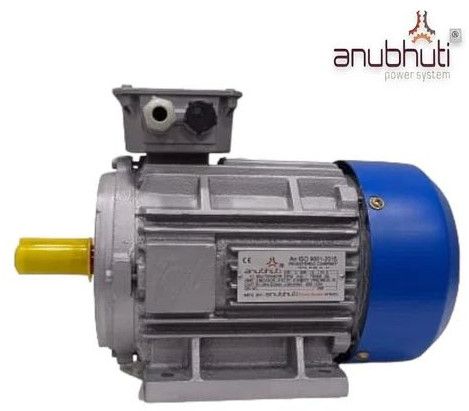

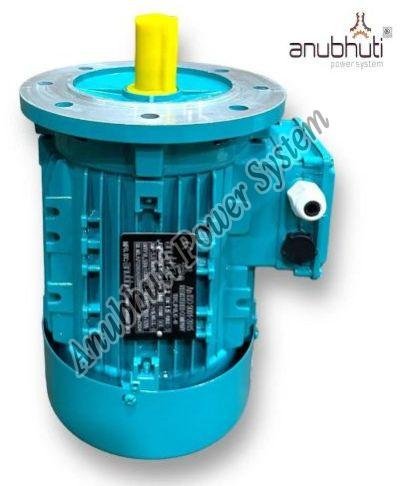

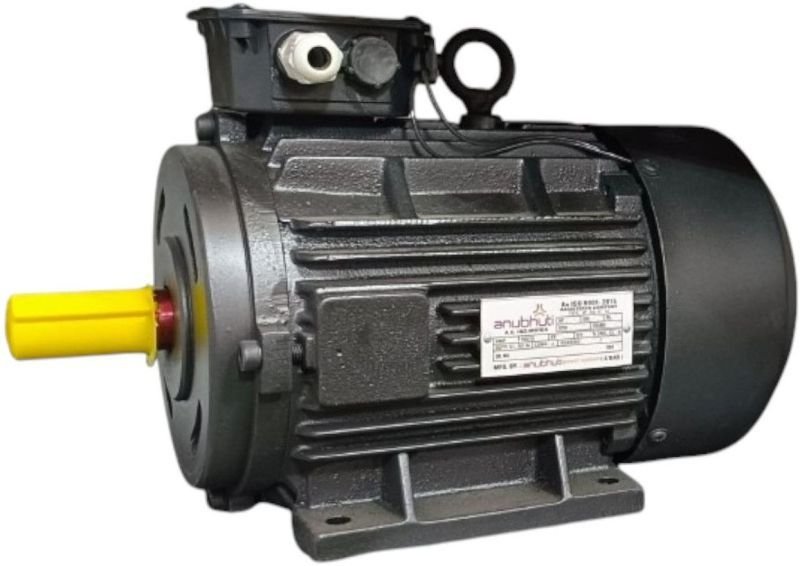

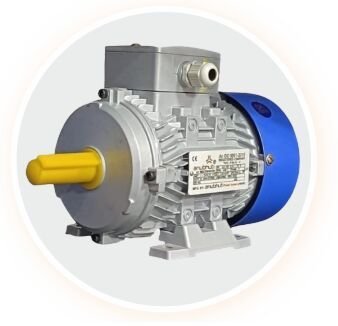

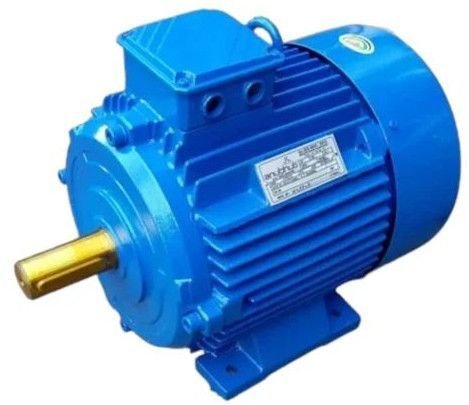

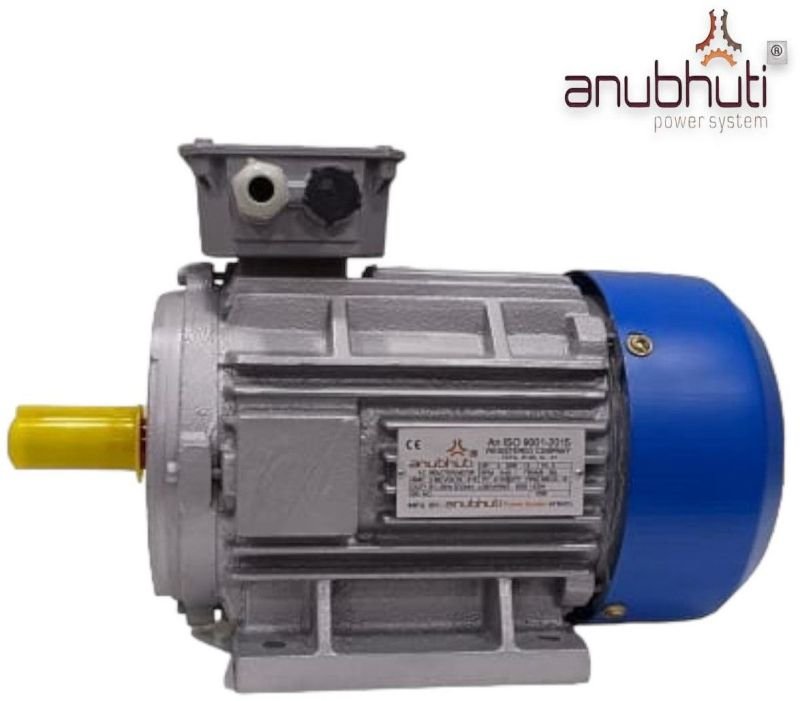

Specifications

• Mounting: Foot – Flange – Face
• Standards: Performance conforms to be: 325 and dimensions according to IS 1231 & IS 2223
• Frame: Motor are supplied in a robust, rugged cast iron frame with integral feet.
• On Request we can supply motor in aluminum body up to 100 L frame.
• Ratings: All Standard Three phase Motors are continuous rated to comply with performance standards.
• Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60 Also)

Details

• Range :0.10 H.P. to 20 H.P. (0.075 K.W. to 15 K.W.) Frame 63 to 160L in 2, 4, 6, & 8 Pole
• Mounting: Foot – Flange – Face
• Standards: Performance conforms to be: 325 and dimensions according to IS 1231 & IS 2223
• Frame: Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request, we can supply motor in aluminium body up to 100 L frame.
• Ratings: All Standard Three-phase Motors are continuous rated to comply with performance standards.
• Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60 Also)
• Enclosures: Motor IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55.

Specifications

• Concept: Torque motors are offered for various applications where the rpm of motor is required to be changed with constant torque.
• Range: Torque motors available are three phases and single phase.
• Mounting: Foot – Flange – Face ( B3 / B5 / B14 )
• Voltage: 215 volts +- 5% 50 Hz. +- 3% for single phases (on customer request we are also able to supply motor in 110 volts on 60 Hz), 415 volts +- 5% 50 Hz. +- 3% for three phases (on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60 Hz ).
• Insulation: Insulation class F with constant duty (s1).

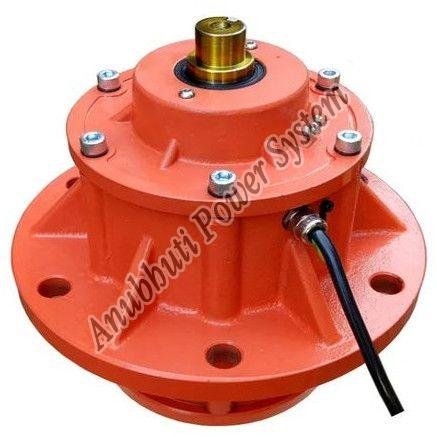

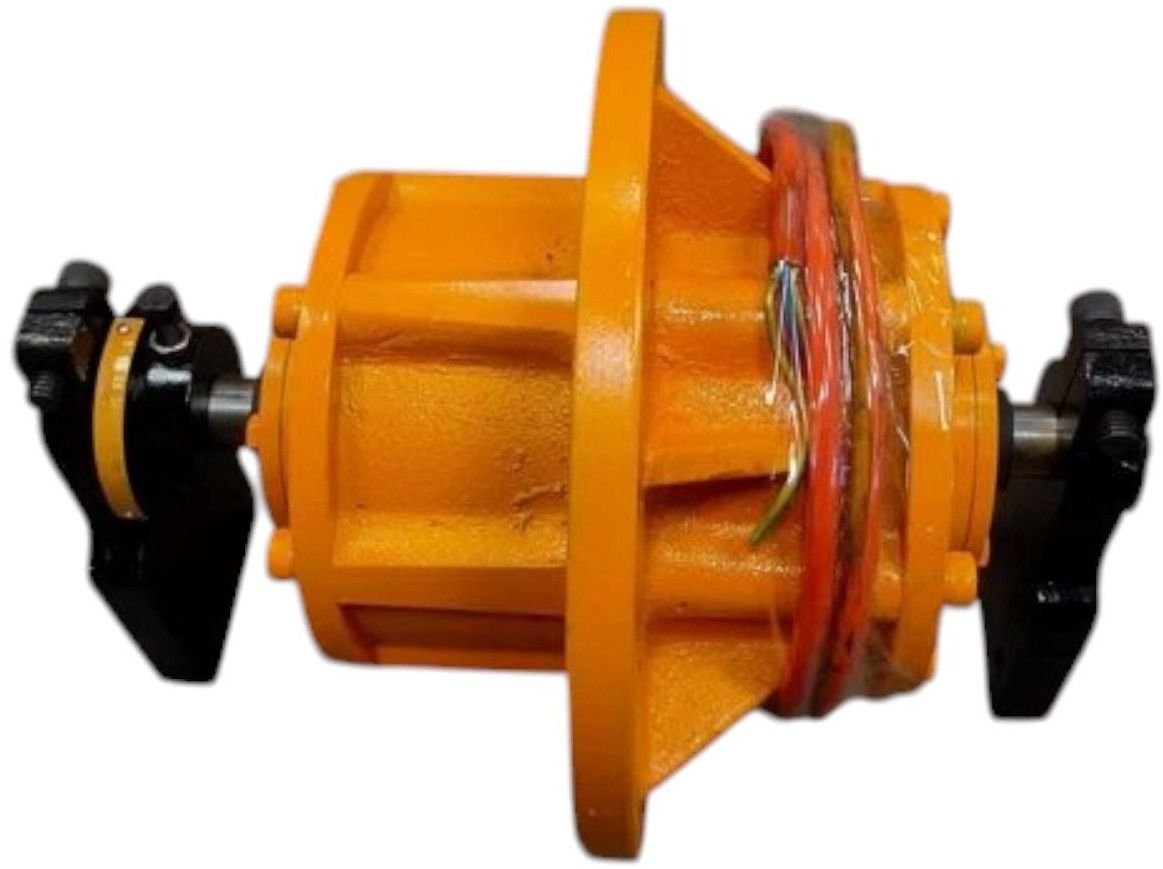

Concept

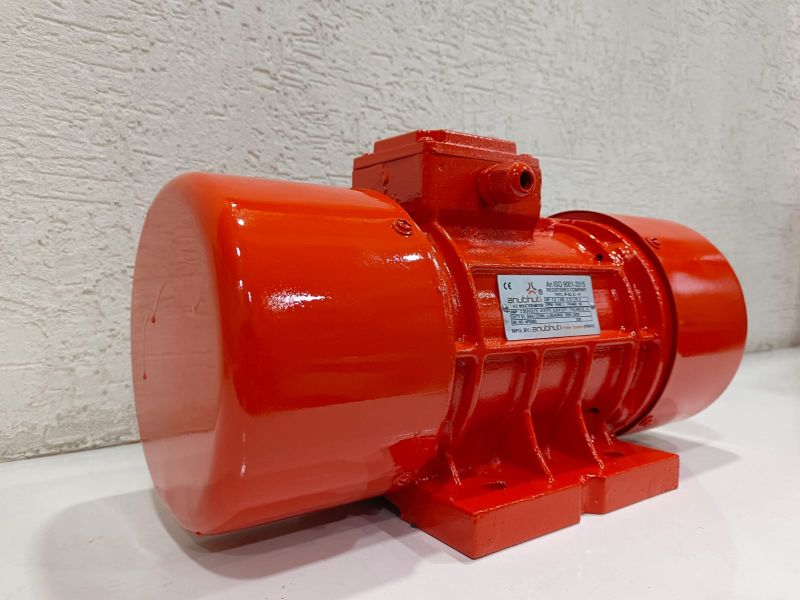

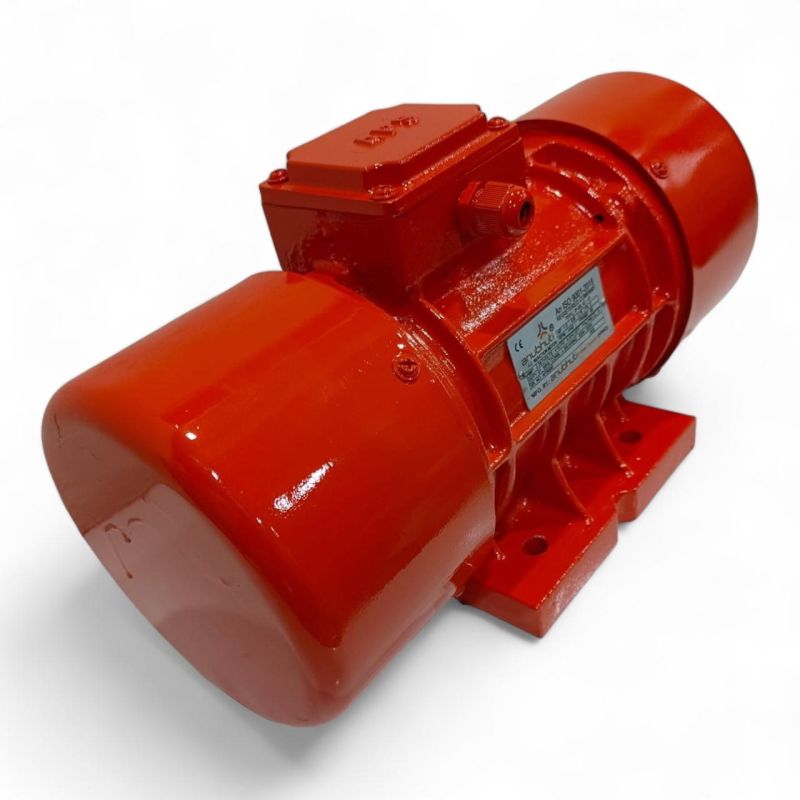

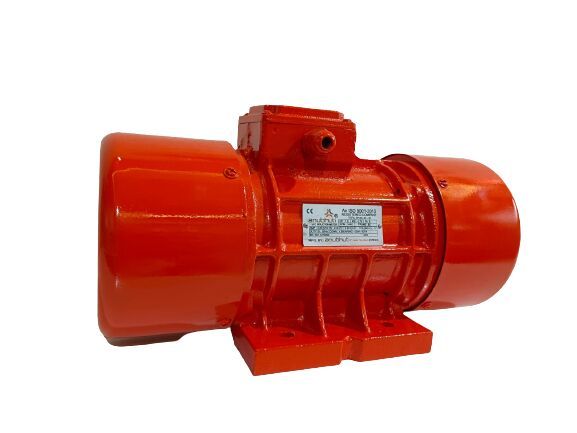

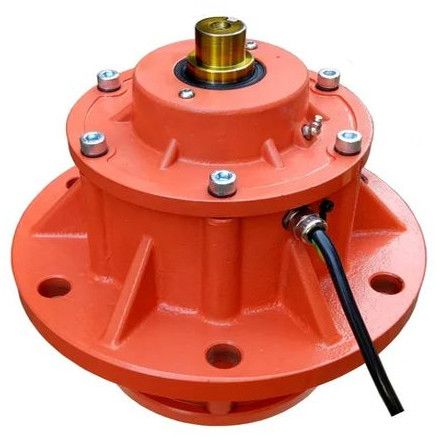

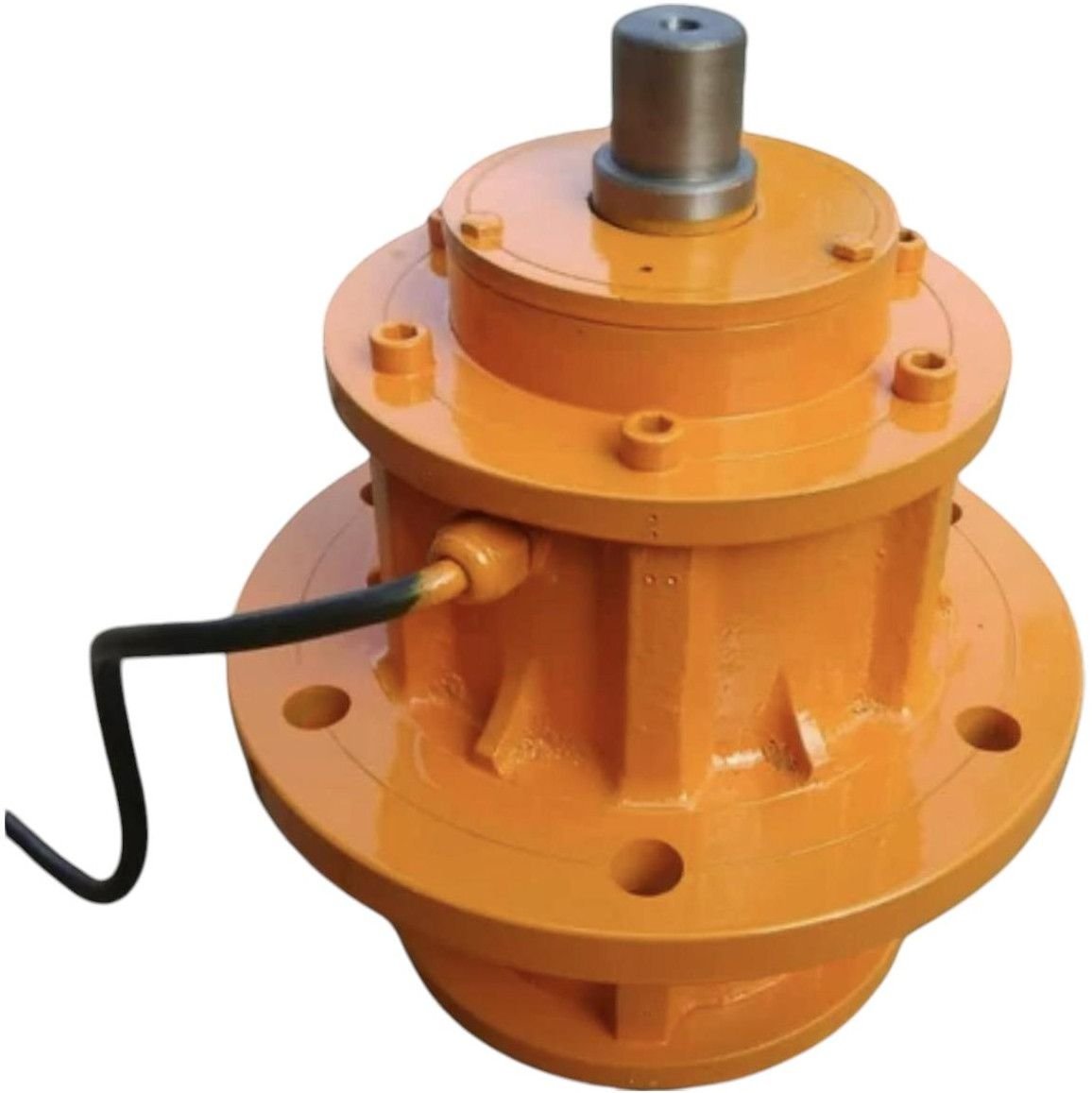

• The external vibrator is a three-phase or single phase synchronous motor that has eccentric weights (unbalance weight) mounted at the ends of the Rotor shaft.
• The rotating shaft causes centrifugal forces, which can be adjusted by moving the weights it create a vibration.

Mounting

• Foot-flange-Vibration-proof motor winding: Insulation class F enhances the safety under continuous operation conditions and at high ambient temperatures.
• Motor are tropical zed and designed for an extended voltage range.

Bearing & Lubrication

• The right type of bearing for every application guarantees long service life even continuous operation.
• All vibratory motors are permanently lubricated for normal operation.
• Large capacity motor can be re-lubricated for average application.
• Sp. Type of grease is used in vibratory motor.
