Gear Motors

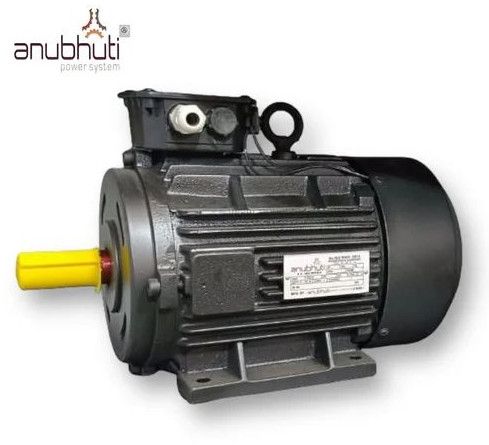

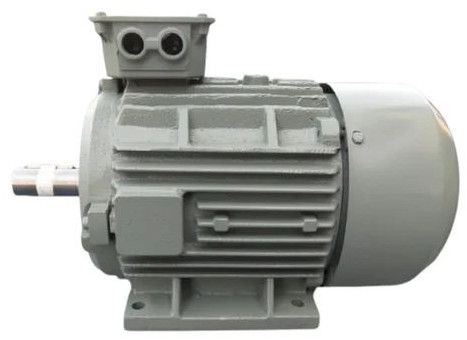

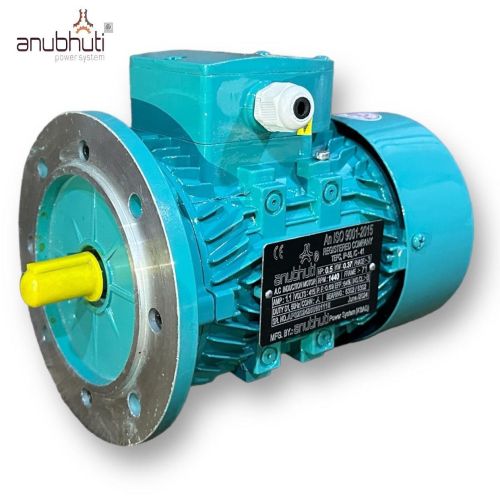

Ratings: All Standard Three-phase Motors are continuous rated to comply with performance standards.

Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60)

Enclosures: Motor IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.Range:Range : 0.10 H.P. to 20 H.P. (0.075 K.W. to 15 K.W.) Frame 63 to 160L in 2, 4, 6, & 8 Pole

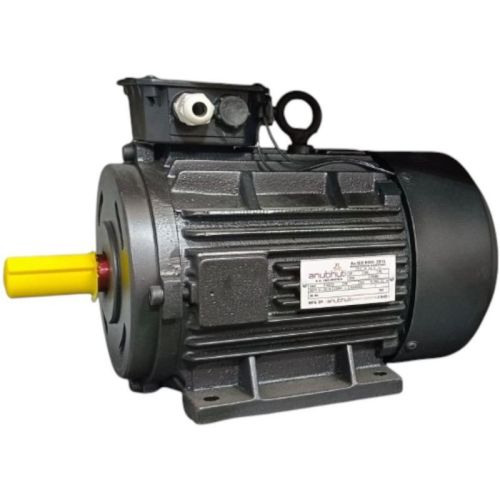

Mounting: Foot – Flange – Face

Standards: Performance conforms to be: 325 and dimensions according to IS 1231 & IS 2223

Frame: Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request, we can supply motor in aluminium body up to 100 L frame.

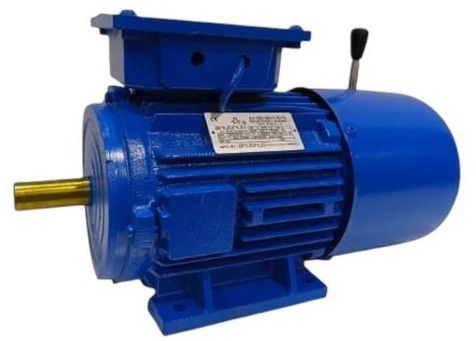

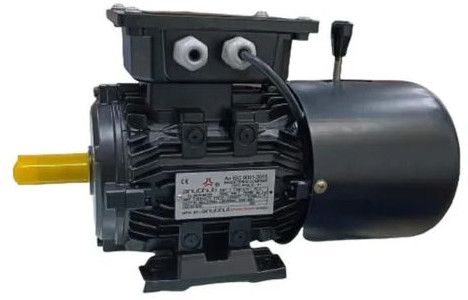

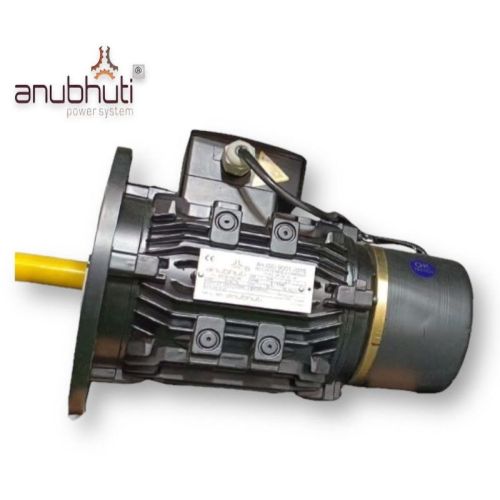

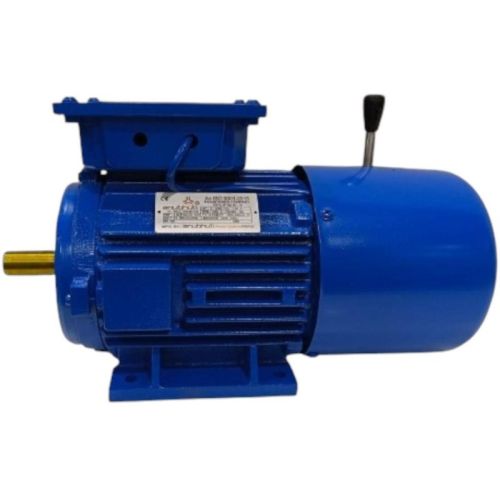

Concept: Brake Motor is a combination of three phase or single phase Squirrel Cage Induction Motor with Electro-Magnetic Disc Brake (A.C.) when power is switched off with ordinary motor, the rotating part will stopped after some time but if brake motor is used rotating mass will stop instantaneously. All Brakes are mounted at the non-driving end of the motor, braking disc is mounted directly on the motor shaft. Brakes are directly acting, no lever or links are required.Range:Three phase: – 0.5H.P. to 10 H.P. ( 0.37 to 7.5 Kw.) In 3000, 1500, 1000 & 750 Rpm with A.c. & D.c. brake frame 71 to160L on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60.Singe phase: 0.25 H.P. to 3 H.P. In 3000, 1500, 1000 Rpm with A.c.& D.c. brake frame 63 to 112MMounting: Foot-Flange-FaceVoltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525volts on HZ. 50 or60 )Insulation: Motor supply with class F insulation as a standard feature. Also, supply H on request of a customer at extra cost.

Ratings: All Standard Three-phase Motors are continuous rated to comply with performance standards.

Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60)

Enclosures: Motor IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.Range:Range : 0.10 H.P. to 20 H.P. (0.075 K.W. to 15 K.W.) Frame 63 to 160L in 2, 4, 6, & 8 Pole

Mounting: Foot – Flange – Face

Standards: Performance conforms to be: 325 and dimensions according to IS 1231 & IS 2223

Frame: Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request, we can supply motor in aluminium body up to 100 L frame.

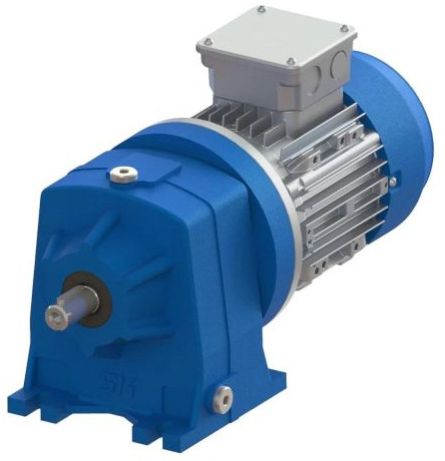

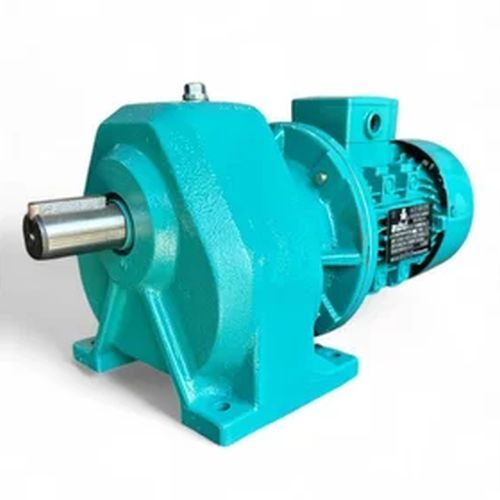

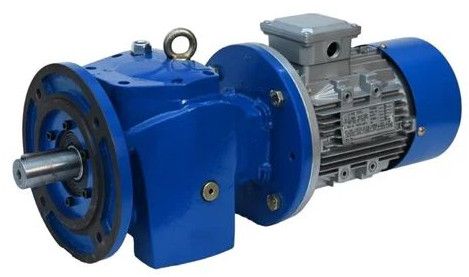

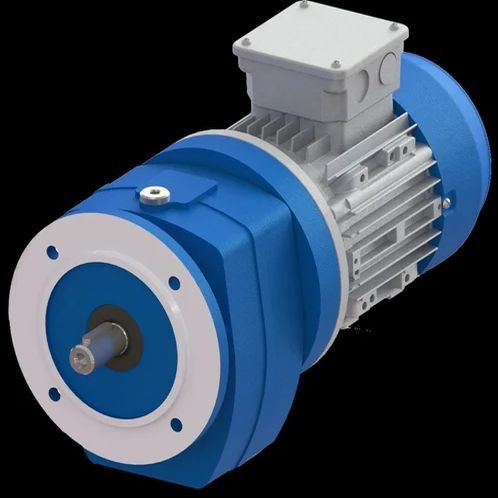

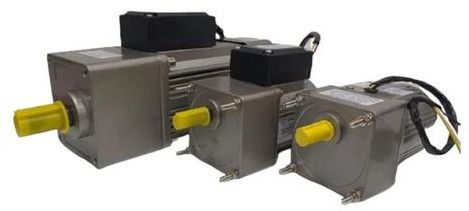

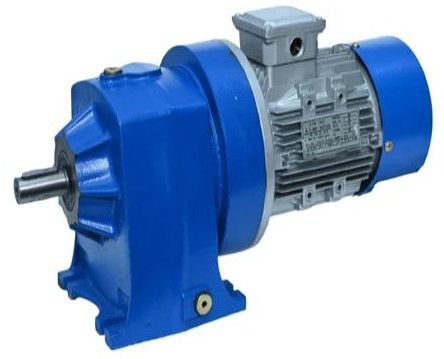

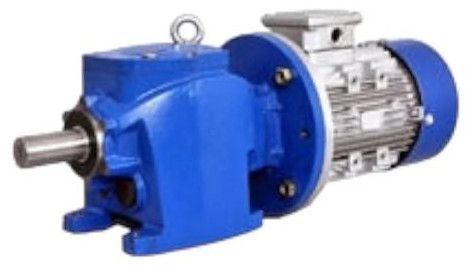

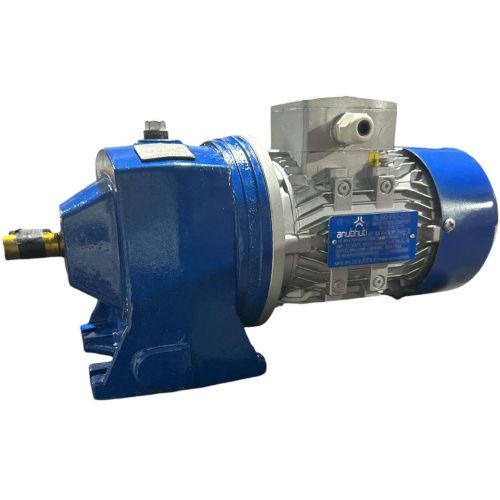

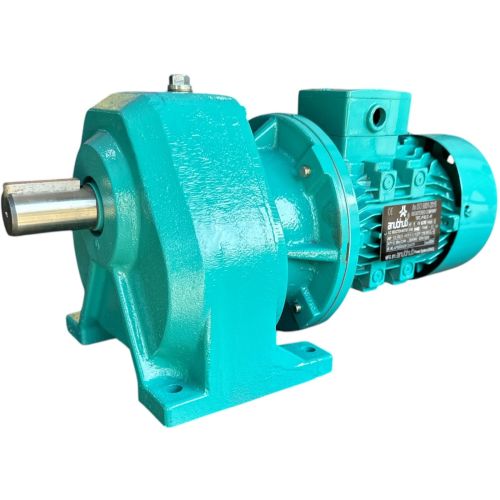

The Gear Motor is a reliable and efficient solution that combines an electric motor with a precision gearbox to deliver high torque at low speeds. Designed for smooth and consistent power transmission, the Gear Motor is widely used in industrial automation, material handling, conveyors, packaging machines, and robotics.

Built with high-quality components, the Gear Motor offers long service life, low maintenance, and quiet operation. Its compact size and integrated design make it ideal for space-constrained applications where controlled motion and efficiency are key.

Key Features of Gear Motor:

High Torque Output: The Gear Motor delivers powerful torque at reduced speeds.

Compact Design: Space-saving, ideal for tight installations.

Smooth & Silent Operation: Precision-cut gears ensure quiet, low-vibration performance.

Energy Efficient: Optimized for continuous-duty cycles with minimal power loss.

Easy to Install & Maintain: Standard mounting options and low servicing needs.

Applications of Gear Motor:

Conveyor Belts & Lifting Systems

Packaging & Labeling Machines

Textile & Printing Equipment

Robotics & Automation

Food Processing Machinery

Choose the Gear Motor for precise speed control, robust performance, and long-term reliability. Whether for small machines or heavy-duty setups, the Gear Motor ensures smooth and efficient power delivery.

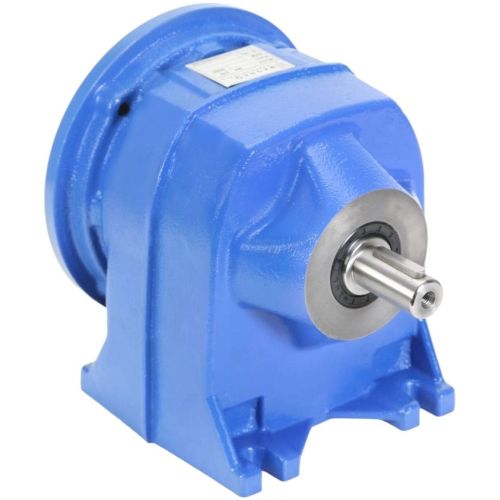

ANUBHUTI gears sizes, transmission ratios and main dimension according to standard series of numbers. Economic mass production, comprehensive maintenance of stocks, favorable delivery periods,
Easy servicing, low weight, compact design with high efficiency due to case-hardened steels of the highest strength, amply dimensioned bearing, very srnooth running with low noise due to ground helical gears and lapped high precision spiral bevel gears, housing of vibration-damping design of grey cast iron. The use of the most up to date machining equiprnents with constant production control by rneans of the most recent measuring machines.

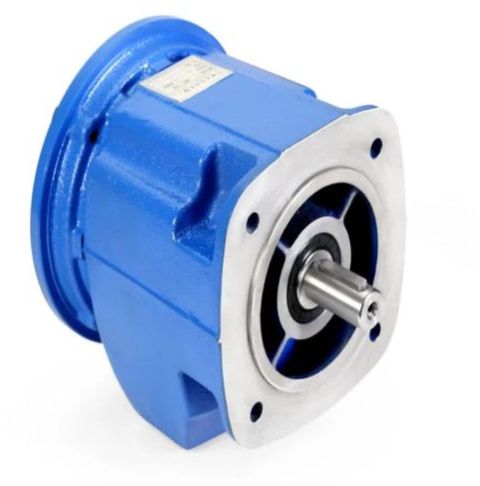

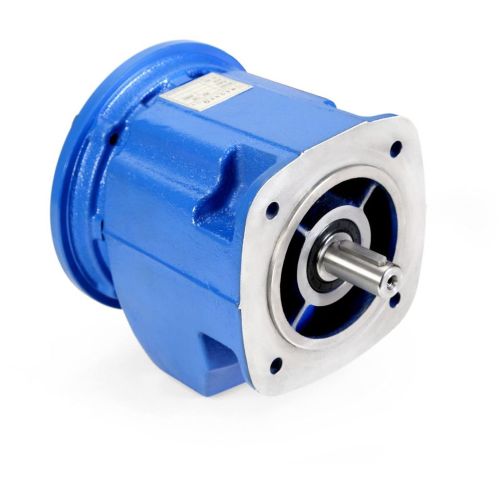

The Vertical Helical Gear Motor is a premium power transmission solution designed for high torque, energy efficiency, and vertical mounting. Engineered with precision-cut helical gears, the Vertical Helical Gear Motor ensures smooth operation, high load capacity, and long service life in demanding vertical drive systems.

Perfect for applications such as agitators, mixers, conveyors, and lifting systems, the Vertical Helical Gear Motor delivers superior torque transmission with minimal backlash and noise. Its compact vertical design saves space while providing optimal power output in continuous or heavy-duty operations.

Key Features of Vertical Helical Gear Motor:

High Efficiency: The Vertical Helical Gear Motor operates with low power loss and excellent output performance.

Vertical Mounting Design: Ideal for vertical shafts, saving space and improving load alignment.

Durable & Reliable: Constructed with hardened steel gears and rigid housing for long-lasting durability.

Low Noise & Vibration: Helical gears in the Vertical Helical Gear Motor ensure quiet and smooth transmission.

Custom Gear Ratios: Available in multiple configurations to suit varied speed and torque needs.

Applications of Vertical Helical Gear Motor:

Vertical Agitators & Mixers

Cooling Towers

Material Lifting Systems

Chemical & Food Processing

Packaging & Conveyor Lines

When you need vertical power transmission with high efficiency and low maintenance, the Vertical Helical Gear Motor is the perfect choice. Built for performance and durability, the Vertical Helical Gear Motor is trusted across industries for vertical-drive solutions.
