| Business Type | Manufacturer, Supplier |
| Brand Name | ANUBHUTI,anubhuti |
| Color | Silver |
| Condition | New |
| Click to view more | |
Product Details
Rated Power
0.5 hp,0.5 HP
Automatic Grade
Electric
Certification
ISO 9001:2008
Voltage
440V
Type
foot cum flange b35,three phase electric motor
Weight
8kg
Frequency
50 hz
Phase
Three
Country of Origin
India
Gearing Arrangement
yes
Speed
1000-2000rpm
Appliication
industrial use
Frame Size
71 Frame
Kilowatt
0.37 Kw
Material
aluminum body
Mounting Type
Foot cum Flange
Number of Poles
4
Warranty
2 years
Product Code
APS001
Port
X FACTORY
Payment Terms
Other
Delivery Time
READY STOCK
Packaging Details
box
Ratings: All Standard Three-phase Motors are continuous rated to comply with performance standards.
Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60)
Enclosures: Motor IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.Range:Range : 0.10 H.P. to 20 H.P. (0.075 K.W. to 15 K.W.) Frame 63 to 160L in 2, 4, 6, & 8 Pole
Mounting: Foot – Flange – Face
Standards: Performance conforms to be: 325 and dimensions according to IS 1231 & IS 2223
Frame: Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request, we can supply motor in aluminium body up to 100 L frame.

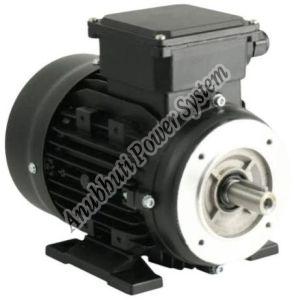

Looking for "Foot Cum Flange Mounted Three Phase Motor" ?
