Worm Gear Box

Centre Distance: 30 mm to 150 mm
Speed Ratio: 7.5, 10, 20, 25, 30, 40, 50, 60, 80, 100
Input power: 3 HP to 10 HP

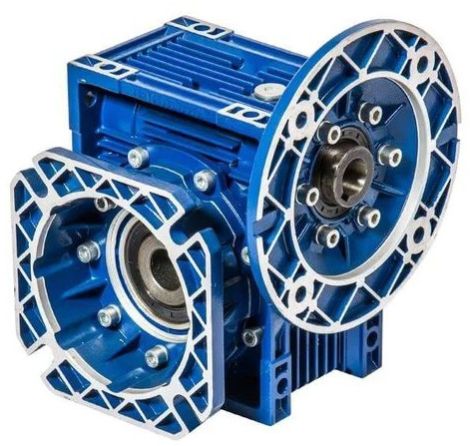

Standard Model: NMRV box type 30, 40, 50, 63, 75, 90, 110, 130,150 with Suitable AC motors.

Gearing Arrangement Type: –  Worm, Helical
Orientation: -Horizontal, Vertical
Power (HP): -0.5 – 10.0
Output (rpm or ratio): -15 – 196
Mounting: -Flange, Foot
Input Speed (rpm): -1400 rpm, 2000 rpm, 1500 rpm
Colour: -Silver / Blue
Condition: -NewOutput (rpm or ratio): -15 – 196
Mounting: -Flange, Foot
Input Speed (rpm): -1400 rpm, 2000 rpm, 1500 rpm
Colour: -Silver / Blue
Condition: -New
Phase: -Three / single
Warranty: -1 Year Standard
Number Of Ratio: -7.5:1 TO 100:1
Size: -30-150

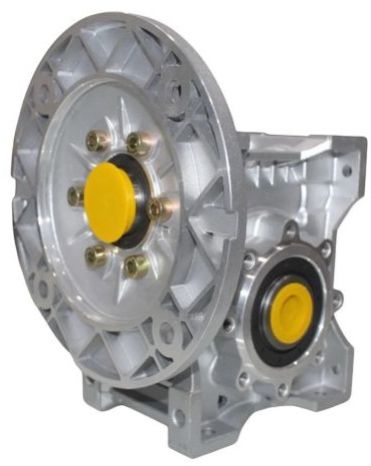

Material: -Aluminum Casting

Centre Distance: 30 mm to 150 mm
Speed Ratio: 7.5, 10, 20, 25, 30, 40, 50, 60, 80, 100
Input power: 3 HP to 10 HP
Standard Model: NMRV box type 30, 40, 50, 63, 75, 90, 110, 130,150 with Suitable AC motors.

Gearing Arrangement Type: –  Worm, Helical
Orientation: -Horizontal, Vertical
Power (HP): -0.5 – 10.0
Output (rpm or ratio): -15 – 196
Mounting: -Flange, Foot
Input Speed (rpm): -1400 rpm, 2000 rpm, 1500 rpm
Colour: -Silver / Blue
Condition: -NewOutput (rpm or ratio): -15 – 196
Mounting: -Flange, Foot
Input Speed (rpm): -1400 rpm, 2000 rpm, 1500 rpm
Colour: -Silver / Blue
Condition: -New
Phase: -Three / single
Warranty: -1 Year Standard
Number Of Ratio: -7.5:1 TO 100:1
Size: -30-150
Material: -Aluminum Casting

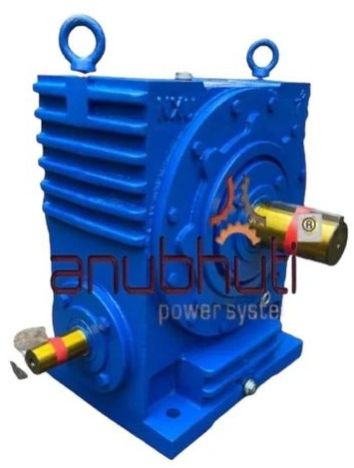

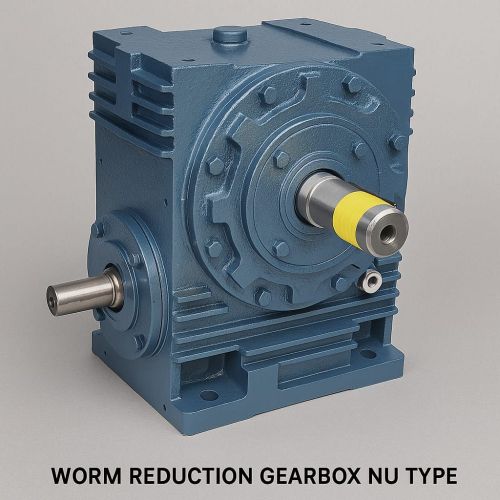

The Mild Steel Blue Worm Gear Box is a versatile and durable solution for various industrial applications requiring smooth and efficient torque transfer. With its sturdy mild steel body and protective blue coating, it offers resistance against rust and long-term durability.

ANUBHUTI the brand name of since : 1991 the company product are very well accepted all over India.

ANUBHUTI Manufacturer of worm reduction Gear unit and other mechanical power transmission equipment.

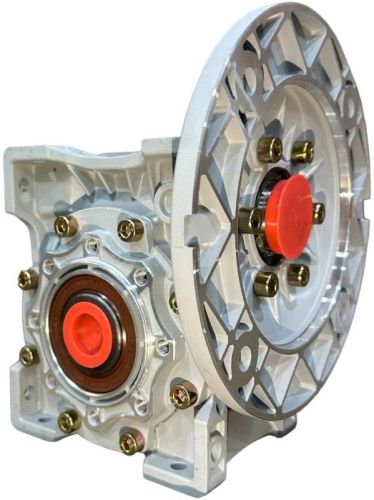

ANUBHUTI  Gear worm reduction Gear units are different types such as a universal type(Horizontal,Oval Driven,Vertical upward & down ward type.)Horizontal type (solid foot mounting type)to transmit minimum 0.5 HP and maximum 60 HP with selection of correct sizes. Normally available in reduction ratio at 5:1,7.5:1,10:1,15:1,20:1,25:1,30:1,40:1,50:1,60:1,70:1, and also higher ratio from 100:1 to 4900:1 for double reduction Gear unit (compound gear box unit) can be given on specific inquiries. Apart from that we also make hollow shaft mounting gear box. adaptable type & even tailor made also to meet your requirement. All the units offer continues load carrying capacity,silent operation and complete reliability.

Specifications

Duties:- Normal duty and heavy duty series gaered motors are available under our regular manufacturing program,Light duty and extra heavy duty series can be offered on specific enquires.

General guidance regarding proper selection of geared motor can be given supply of data regarding HP output speed,nature of load etc.

Testing:- All components are tested to rigid standard of tolerances. Assembled gear units are tested on no load for noise level,oil leakage and temperature rise.

Data to be furnished with enquiry:-

The following details are to be furnished along with enquiry.

1. Load in HP or KW

2. Torque in N.M.

3. Supply voltage and frequency details.

4. Operating condition such as peak or shock loads giving magnitude and duration,ambient conditions,(i.e.)temperature humidity etc.,number of operating hours per day and mounting positing.

Salient Features:-1.Geared motors,incorporation liberally designed and perfectly alignedpinions,gears and bearings are compact light in weight and provide a very economic,efficient and trouble free method of speed reduction.

2. Geared motors are suitable for reversible drive and are supplied for variuos mounting positions depending upon requirement.

3. Geared motors incorporate electric motors of proven design evolved over 25 years manufacturing experience.

4. Geared motors are available at very short notice.
