| Business Type | Manufacturer, Supplier |
| IP Rating | IP55 |
| Material | MS BODY |
| Mounting Type | Flange |
| Click to view more | |

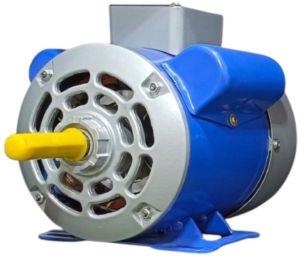

Product Details
Power
0.37 KW
Country of Origin
India
Phase
Single Phase
Brand Name
Anubhuti,anubhuti
Finishing
Coated
Horsepower
0.5 HP
Speed
1440 rpm
No. Of Poles
4
Type
1phase
mounting
b5 / b3
Warranty
1 Year
Product Code
APS001
Port
X FACTORY
Payment Terms
T/T, Other
Delivery Time
READY STOCK
Packaging Details
box
Specifications
Frame: Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request, we can supply motor in aluminium body up to 100 L frame.
Ratings: All Standard Three-phase Motors are continuous rated to comply with performance standards.
Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60 Also)
Enclosures: Motor IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.
Range:
Range :0.10 H.P. to 20 H.P. (0.075 K.W. to 15 K.W.) Frame 63 to 160L in 2 & 4 Pole
Mounting: Foot – Flange – Face
Standards: Performance conforms to be: 325 and dimensions according to IS 1231 & IS 2223
