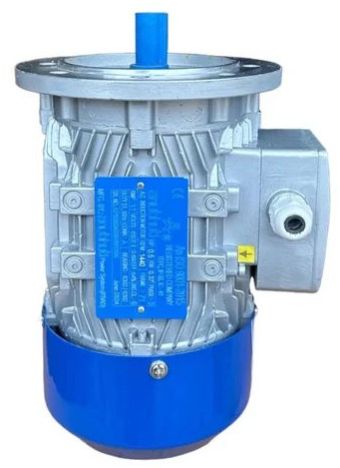

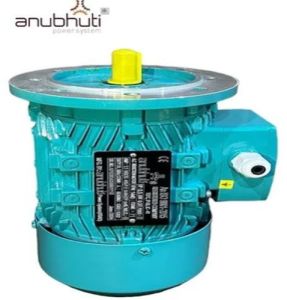

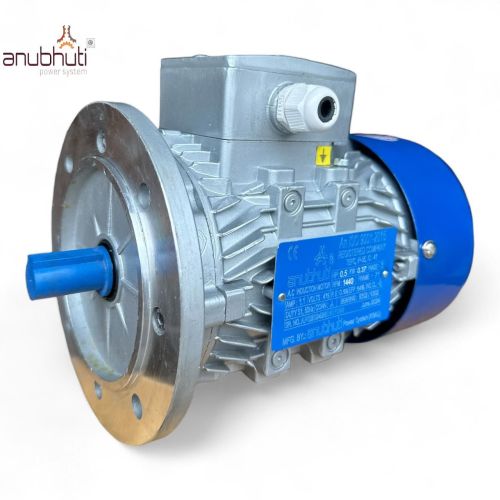

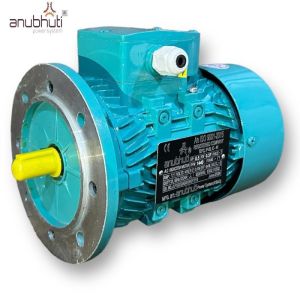

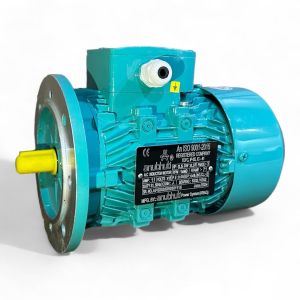

1 HP Three Phase Induction Motor

Ratings: All Standard Three-phase Motors are continuous rated to comply with performance standards.

Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60)

Enclosures: Motor IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.Range:Range : 0.10 H.P. to 20 H.P. (0.075 K.W. to 15 K.W.) Frame 63 to 160L in 2, 4, 6, & 8 Pole

Mounting: Foot – Flange – Face

Standards: Performance conforms to be: 325 and dimensions according to IS 1231 & IS 2223

Frame: Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request, we can supply motor in aluminium body up to 100 L frame.
