Twitter| Business Type | Manufacturer, Supplier, Trader, Distributor |
| Brand Name | Anubhuti,ANUBHUTI |
| Material | Cast Iron |
| Finishing | Polished |
| Click to view more | |
Preferred Buyer From
| Location | Anywhere in India |
Product Details
Driven Type
Electric
Shape
Round
Color
Black
Automatic Grade
Manual
Power
10 KW, 10-50 KW
Speciality
Easy To Use, High Efficiency, Reliable
Usage
Industrial
Certification
ISO 9001:2008
Voltage
440 V
Mounting Type
Flange
Water Capacity
20 LPM
Working Pressure
NONE
Type
AC
Weight
10kg, 15kg
Frequency
50HZ
Phase
Three Phase
Efficiency
78%
Warranty
1 Year
Ambient Temperature
65%
Country of Origin
India
IP Rating
IP 65
Corrosion Resistance
Yes
Number of Poles
2 Pole, 4 Pole, 6 Pole
Centrifugal Force
AS PER MODEL
Bearing Lubrication
HIGH TEMPERATURE
Load Speed
AS PER REQUIRED
Speed (Rpm)
1500, 960, 720
Shaft
SS410
Power Source
Electric
I Class
B.E.F
Product Code
APS105
Port
EX FACTRIY
Payment Terms
D/A, D/P, Other
Delivery Time
2 DAYS
Packaging Details
BOX PACKING
Specifications

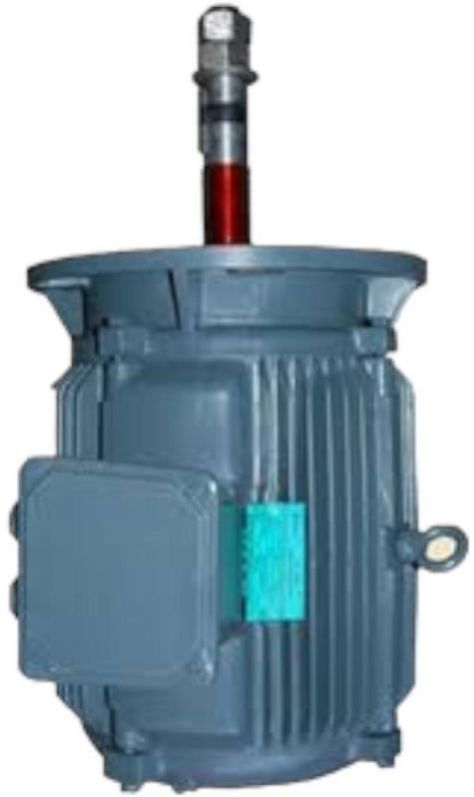

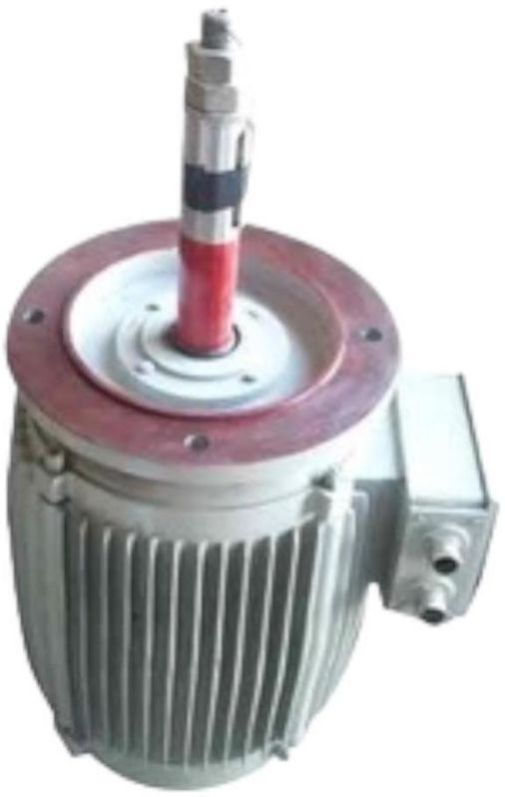

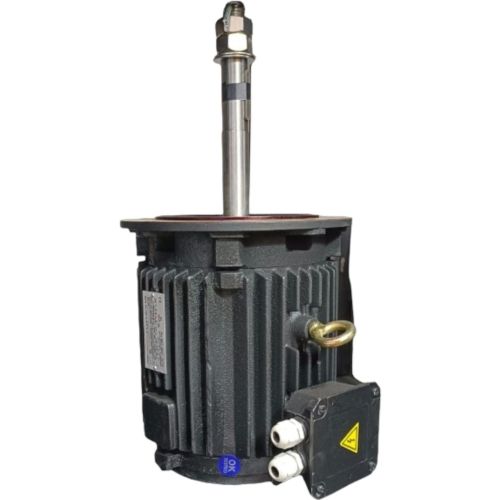

- Concept: These motors are especially designed for cooling tower Fans for continues running in humidity area.
- Range: Our cooling tower motor range 0.25 to 10 hp. Frame 71 to 160L.
- Motors are flange mounting with IP-55 Degree of protection. Supply 415(+- 5%) voltage and frequency 50Hz. (+-3%) combined +-5%. Motor available in 4, 6, 8, 10 and 12 pole. On customer request we are also to able supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60.
- Performance: Motor performance conforms to IS: 325.
- Mounting: Mounting V1 shaft downward position Flange B-5 as per IS 2223.
- Duty & Insulation: Insulation class âFâ with constant duty (s1) Cooling tower motor design for Working S1Duty. For continues working.
- Shaft and Bearing: Our cooling tower Motor relative humidity up to 90%.
- Cooling tower Motor Shaft is Mead by stainless steel material AISI-410. Nut and washer are made for stainless steel AISI-202. It can make protection against corrosion. Motor shaft extended so cooling fan fitted properly.
