| Business Type | Manufacturer, Supplier |
| Speed | 1440 RPM |
| Application | Cranes, Hoists, Hydraulic Systems |
| Power | 1.1 KW |
| Click to view more | |
Product Details
Country of Origin
India
Phase
Three
Condition
New
Driven Type
Electric
Current Type
AC
Color
as per requirement
Brand
Anubhuti
Material
Cast Iron
Brake Type
DC Brake System 20nm
Number Of Flower
Electric Brake Motor
horse power
1.5 hp
pole
2 / 4 / 6
mounting
b3, b5, b14
duty
s1, s2, s3, s4
Product Code
APS11
Port
X FACTORY
Payment Terms
T/T
Delivery Time
4 DAYS
Packaging Details
box

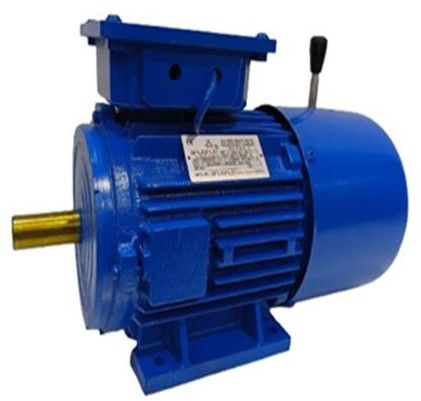

Concept: Brake Motor is a combination of three phase or single phase Squirrel Cage Induction Motor with Electro-Magnetic Disc Brake (A.C.) when power is switched off with ordinary motor, the rotating part will be stopped after some time but if brake motor is used rotating mass will stop instantaneously. All Brakes are mounted at a non-driving end of the motor, braking disc is mounted directly on the motor shaft. Brakes are directly acting, no lever or links are required.
Range:
Three phase: – 0.5H.P. to 10 H.P. ( 0.37 to 7.5 Kw.) In 3000, 1500, 1000 & 750 Rpm with A.c. & D.c. brake frame 71 to160L on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60.
Singe phase: 0.25 H.P. to 3 H.P. In 3000, 1500, 1000 Rpm with A.c.& D.c. brake frame 63 to 112M
Mounting: Foot-Flange-Face
Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able supply motor in 220, 380, 460, 525volts on HZ. 50 or 60 )
Insulation: Motor supply with class F insulation as a standard feature. Also, supply H on request of a customer at extra cost.
