| Business Type | Manufacturer, Supplier |
| Brand Name | ANUBHUTI |
| Driven Type | Electric |
| Current Type | AC |
| Click to view more | |
Product Details
Color
Blue
Condition
New
Rated Power
1.5 KW
Application
INDUSTRIAL USE
Certification
ISO 9001:2008
Voltage
440V
Type
Dc Brake Motor
Weight
30-40kg
Efficiency
82%
Continuous Current(A)
7.5
Country of Origin
India
Speed
1440 RPM
Phase
Three
Body Enclosure
IP 55
Electromagnetic Brake Static Friction Torque Motor Shaft
YES
DC Brake
20NM
Contact Gap
0.2MM
Electromagnetic Brake Voltage Or Frequency Or Current Or Input
190V DC 50HZ
HOURSHPOWER
2 HP
Frequency
50 Hz
Mounting
B3, B5, B14, B35, B34
Pole
2 / 4 / 6
Suitable For
Crain / Hoist / Conveyor Ect.
Product Code
APS002
Port
X FACTORY
Payment Terms
Other
Delivery Time
4 DAYS
Packaging Details
BOX

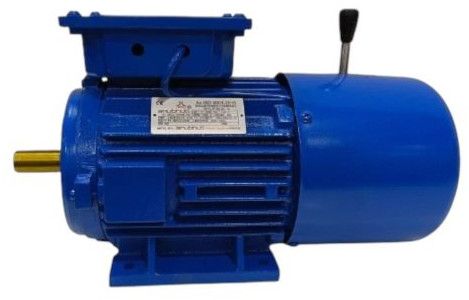

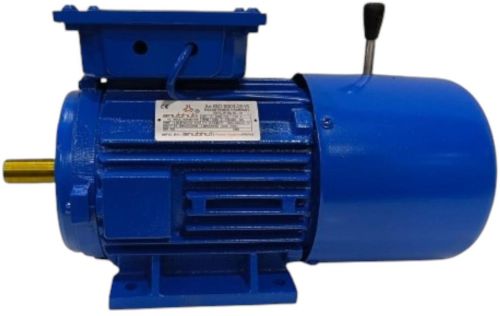

A DC Brake Motor is an advanced motor system that integrates a direct current (DC) braking mechanism, providing efficient and precise stopping capabilities. These motors are highly reliable and are designed to deliver superior performance in various industrial applications requiring controlled and safe stopping. The braking system works independently of the motor’s rotation, ensuring consistent and immediate braking when required.
Concept: Brake Motor is a combination of three phase or single phase Squirrel Cage Induction Motor with Electro-Magnetic Disc Brake (A.C.) when power is switched off with ordinary motor, the rotating part will be stopped after some time but if brake motor is used rotating mass will stop instantaneously. All Brakes are mounted at a non-driving end of the motor, braking disc is mounted directly on the motor shaft. Brakes are directly acting, no lever or links are required.
Range:
Three phase: – 0.5H.P. to 10 H.P. ( 0.37 to 7.5 Kw.) In 3000, 1500, 1000 & 750 Rpm with A.c. & D.c. brake frame 71 to160L on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60.
Singe phase: 0.25 H.P. to 3 H.P. In 3000, 1500, 1000 Rpm with A.c.& D.c. brake frame 63 to 112M
Mounting: Foot-Flange-Face
Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able supply motor in 220, 380, 460, 525volts on HZ. 50 or 60 )
Insulation: Motor supply with class F insulation as a standard feature. Also, supply H on request of a customer at extra cost.
