| Business Type | Manufacturer, Supplier |
| Finishing | Polished |
| Power | 3.7 KW |
| Country of Origin | India |
| Click to view more | |

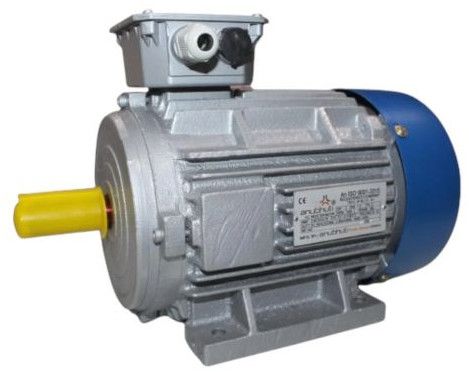

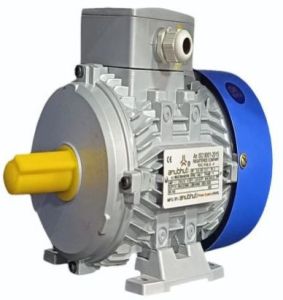

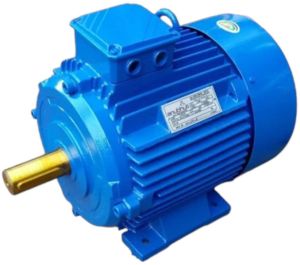

Product Details
Brand Name
Anubhuti
Material
Cast Iron
Shape
Cylindrical
Color
Sliver
Speciality
Robust Construction, Easy To Use, High Efficiency, Reliable
Usage
Hoist, Crane, Industrial
Certification
CE Certified
Voltage
440 V
Mounting Type
Foot
Overall Length
15-20 Inch
Type
AC
Weight
29KG
Frequency
50 Hz
Phase
Three Phase
Efficiency
IE2
Warranty
1 Year
Ambient Temperature
50C
IP Rating
IP55
Corrosion Resistance
Yes
Number of Poles
4 Pole
Body Enclosure
IP 55
Series
APSCI
Pole
4
Horsepower
5 HP
HZ
50HZ
DUTY
S1, S4
Product Code
APS001
Port
X FACTORY
Payment Terms
T/T, Other
Delivery Time
2 DAYS
Packaging Details
BOX
Ratings: All Standard Three-phase Motors are continuous rated to comply with performance standards.
Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60)
Enclosures: Motor IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.Range:Range : 0.10 H.P. to 20 H.P. (0.075 K.W. to 15 K.W.) Frame 63 to 160L in 2, 4, 6, & 8 Pole
Mounting: Foot – Flange – Face
Standards: Performance conforms to be: 325 and dimensions according to IS 1231 & IS 2223
Frame: Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request, we can supply motor in aluminium body up to 100 L frame.
