6,750.00 - 65,850.00 / Piece

5 Piece (MOQ)

Business Type Manufacturer, Supplier
Brand Name Anubhuti,anubhuti
Material Mild Steel
Finishing Polished
Click to view more

Preferred Buyer From

Location Anywhere in India

Product Details

Driven Type
Electric
Gear Type
Worm
Color
Blue
Condition
New
Motor Power
1-3hp, 3-5hp, 5-7hp, 7-10hp
Usage
Conveyor, Pharmaceutical Machinery, Food Packaging Machinery, Chemical Machinery
Style
Vertical, Horizontal
Certification
ROSH Certified
Voltage
440V
Packaging Type
Carton Box, Wooden Box
Mounting Type
Foot
Specialities
Rust Proof, Long Life, High Performance
Thickness
AS PER MODEL
Weight
100-200 Kg
Frequency
50HZ
Warranty
1 Year
After-Sales Service Provided
yes
Country of Origin
India
Input Speed
700rpm, 2800rpm
Orientation
Horizontal
Output Speed
18 rpm to 192
Output Torque
AS PER MODEL
Temperature
55
Corrosion Resistance
No
Type
nu gearbox
Product Code
aps013
Port
ex factory IN AHMEDABAD
Payment Terms
D/A, D/P, Other
Delivery Time
2 to 4 days
Packaging Details
box

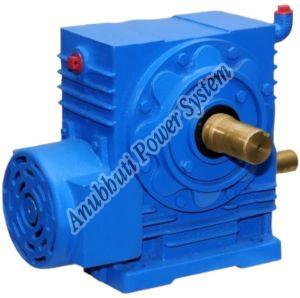

Anubhuti Power System is the best NU type, gearbox supplier. NU Series gearboxes are available with superior quality Cast iron housing. It is suitable for horizontal mounting and with flange type for vertically up/downward positions.



The worm in the gearbox is made of case-hardening alloy steel. Worms are generated on a thread milling machine and ground on a thread grinder to match with the worm wheel. The worm wheels are hobbled on precision hobbling machines with high accuracy hobs. The product is leakproof, dustproof and airtight quality.

The gear requires absolutely no attention, except to check the oil level periodically.

Features

Quick and easy installation.

Universal Casing with Bottom and Top Mounting

The wheel is made up of extremely high-quality phosphor-bronze.
