0.0 - 1.16 Lac / PIECE( + 18% GST applicable)
| Business Type | Manufacturer, Supplier |
| Country of Origin | India |
| Brand Name | ANUBHUTI |
| Application | INDUSTRIAL USE |
| Click to view more | |
Product Details
Color
Grey, Blue, Black, as per requirement
Power
0.18 KW TO 40 KW
Pressure
High Pressure
Voltage
440V
Type
Three Phase Induction Motors
Phase
Three Phase
Warranty
1year
Certifications
ISO 9001:2008, CE Certified
Efficiency Class
IE2
Enclosure
TEFC
Insulation Class
F
Duty
S1
Temp Rise
Limited to Class B
Frequency
50(+5%)hz
Cooling
IC411
Ambient Temperature
40°c
Degree of Protections
Ip55
HORSEPOWER
0.25 HP TO 50 HP
POLE
4 POLE
Product Code
APS001
Port
X FACTORY
Payment Terms
T/T, Other
Delivery Time
READY STOCK
Packaging Details
BOX
Ratings: All Standard Three-phase Motors are continuous rated to comply with performance standards.
Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60)
Enclosures: Motor IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.
Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60)
Enclosures: Motor IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.
Range:
Range : 0.10 H.P. to 20 H.P. (0.075 K.W. to 15 K.W.) Frame 63 to 180L in 2, 4, 6, & 8 Pole
Mounting: Foot – Flange – Face
Standards: Performance conforms to be: 325 and dimensions according to IS 1231 & IS 2223
Frame: Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request, we can supply motor in aluminium body up to 100 L frame.

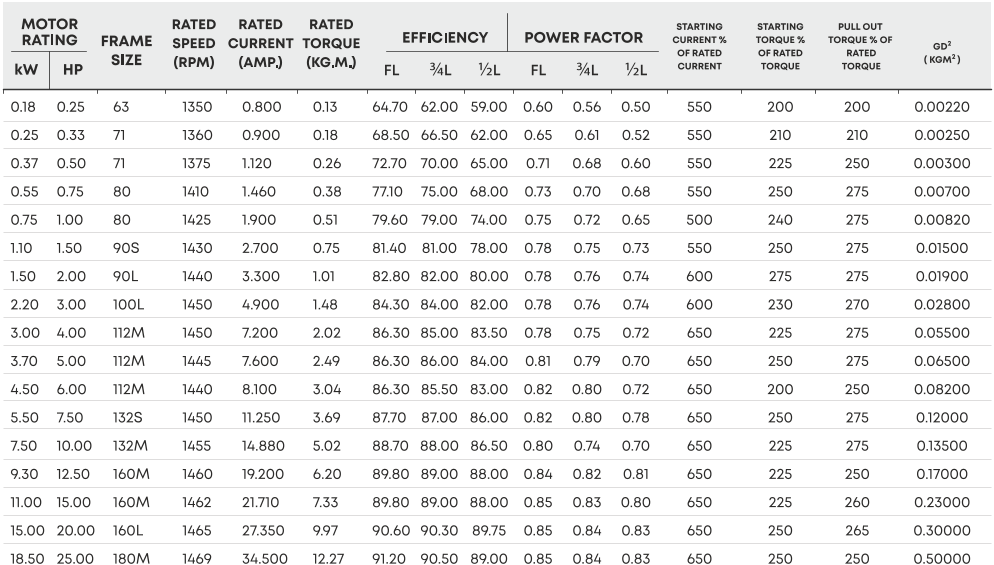

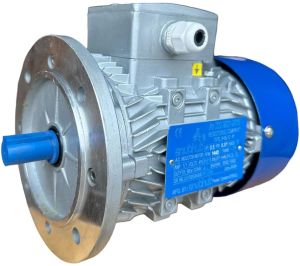

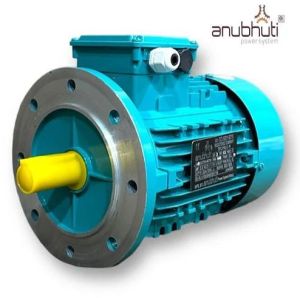

IE2 4 POLE 1000 RPM

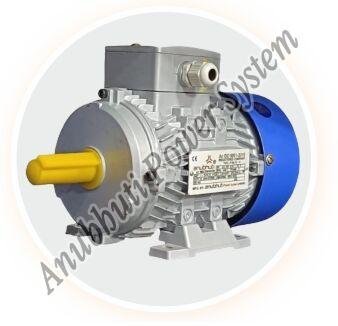

Looking for "IE2 4 Pole Three Phase Induction Motor" ?
