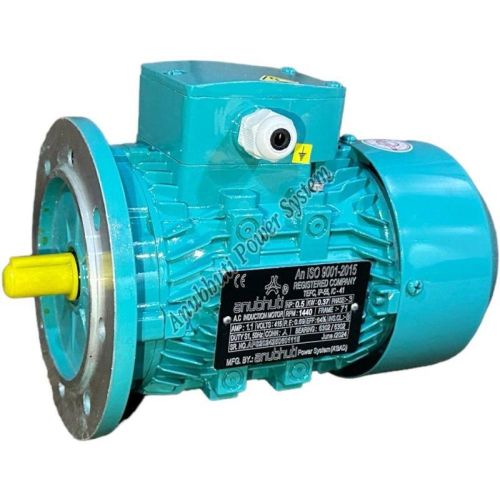

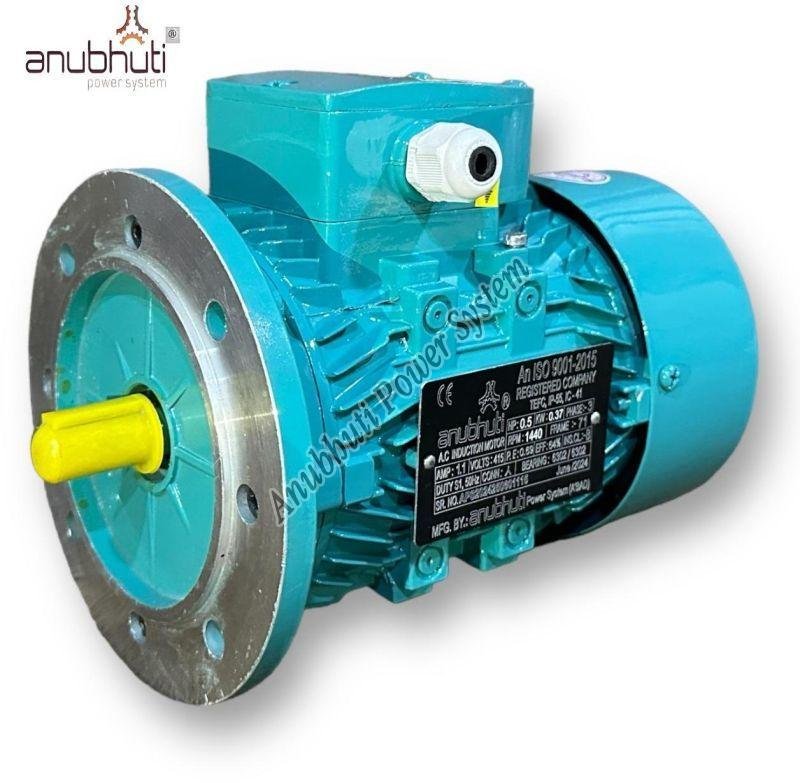

Specifications

• Mounting: Foot – Flange – Face
• Standards: Performance conforms to be: 325 and dimensions according to IS 1231 & IS 2223
• Frame: Motor are supplied in a robust, rugged cast iron frame with integral feet.
• On Request we can supply motor in aluminum body up to 100 L frame.
• Ratings: All Standard Three phase Motors are continuous rated to comply with performance standards.
• Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60 Also)

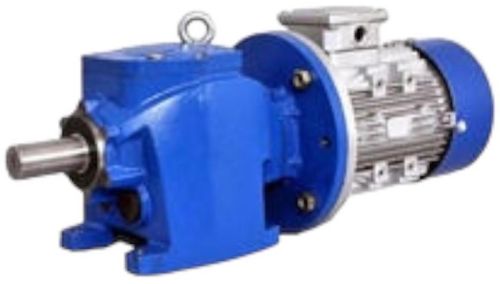

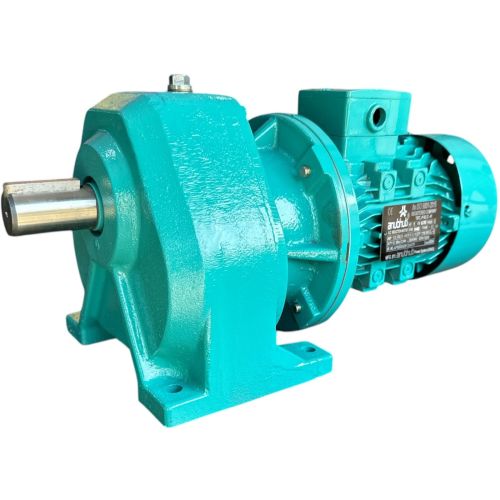

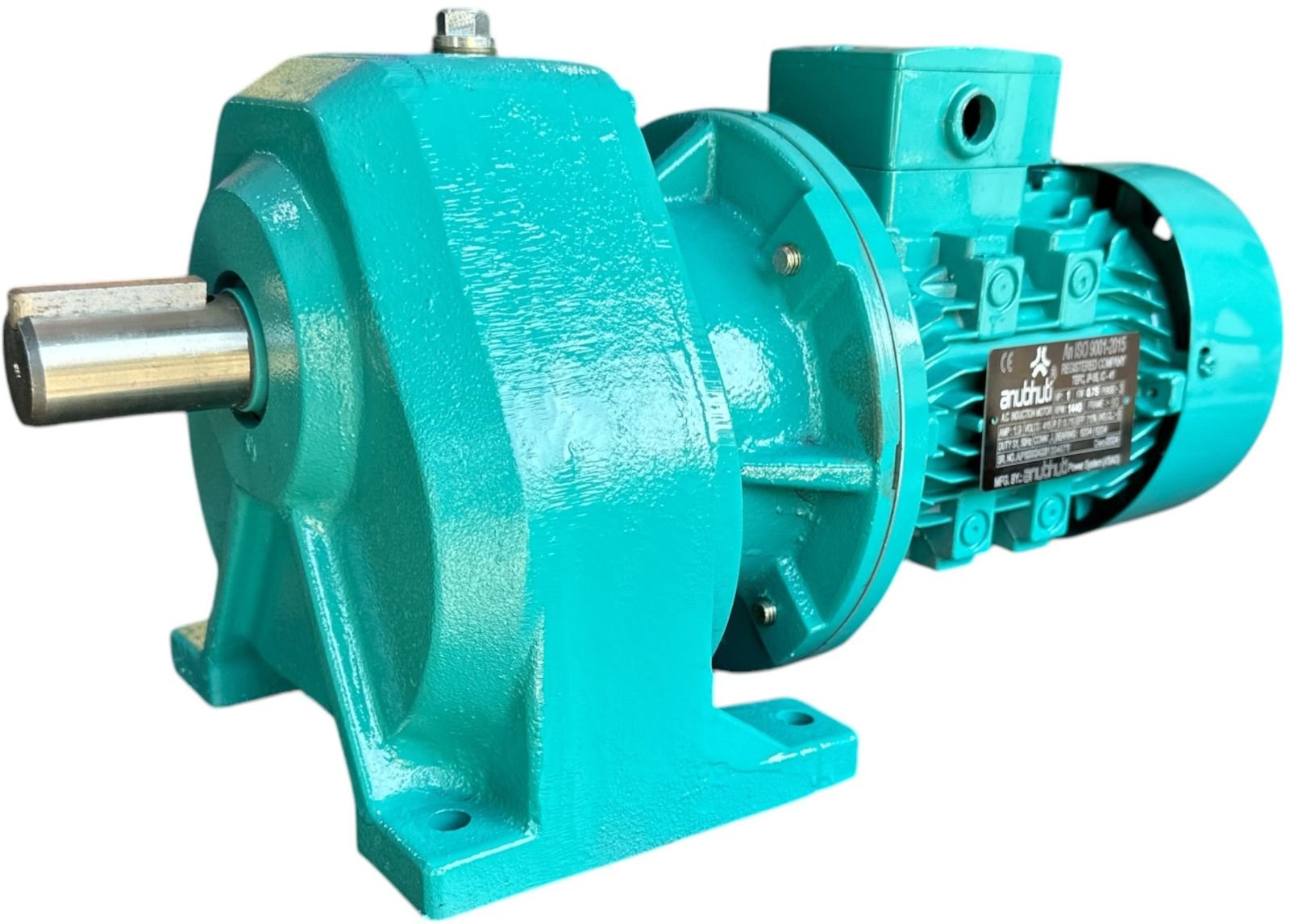

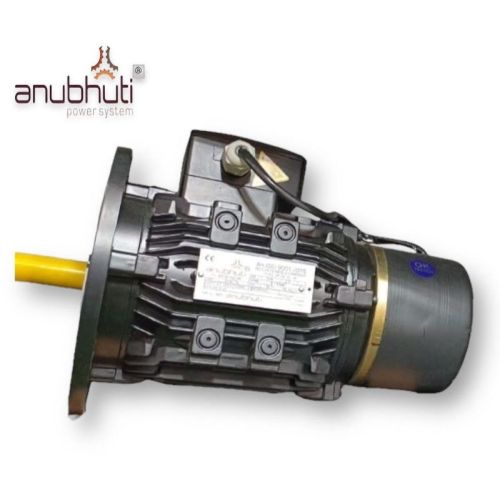

The Three Phase Electric Brake Motor is a robust and efficient motor equipped with an integrated electromagnetic brake, designed for applications that require immediate stopping and reliable holding torque. Built for industrial use, the Three Phase Electric Brake Motor ensures high starting torque, smooth operation, and safe performance in demanding conditions.

With a compact design and rugged construction, the Three Phase Electric Brake Motor is ideal for elevators, hoists, cranes, conveyors, and automated systems. Its brake is automatically activated in the event of power failure, providing maximum safety and control.

Key Features of Three Phase Electric Brake Motor:

Instant Braking: Integrated AC/DC electromagnetic brake for immediate stopping.

Heavy-Duty Build: The Three Phase Electric Brake Motor is built to handle continuous industrial loads.

High Efficiency: Delivers consistent torque and low power consumption.

Low Noise & Vibration: Designed for smooth, silent performance.

Flexible Mounting Options: Available in foot-mounted and flange-mounted designs.

Applications of Three Phase Electric Brake Motor:

Lifts and Hoists

Material Handling Systems

Conveyors

Machine Tools

Packaging Equipment

For precision, safety, and durability, choose the Three Phase Electric Brake Motor – your trusted solution for advanced motion control and industrial automation.

Range:

Details

• Range :0.10 H.P. to 20 H.P. (0.075 K.W. to 15 K.W.) Frame 63 to 160L in 2, 4, 6, & 8 Pole
• Mounting: Foot – Flange – Face
• Standards: Performance conforms to be: 325 and dimensions according to IS 1231 & IS 2223
• Frame: Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request, we can supply motor in aluminium body up to 100 L frame.
• Ratings: All Standard Three-phase Motors are continuous rated to comply with performance standards.
• Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60 Also)
• Enclosures: Motor IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55.

Specifications

• Concept: Torque motors are offered for various applications where the rpm of motor is required to be changed with constant torque.
• Range: Torque motors available are three phases and single phase.
• Mounting: Foot – Flange – Face ( B3 / B5 / B14 )
• Voltage: 215 volts +- 5% 50 Hz. +- 3% for single phases (on customer request we are also able to supply motor in 110 volts on 60 Hz), 415 volts +- 5% 50 Hz. +- 3% for three phases (on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60 Hz ).
• Insulation: Insulation class F with constant duty (s1).

Concept

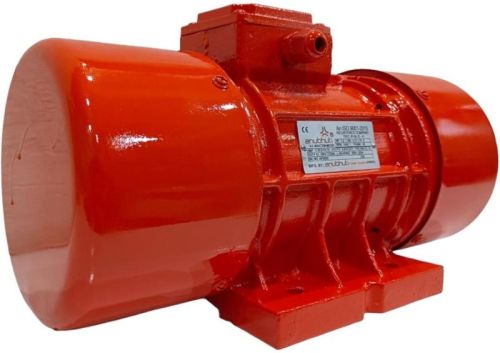

• The external vibrator is a three-phase or single phase synchronous motor that has eccentric weights (unbalance weight) mounted at the ends of the Rotor shaft.
• The rotating shaft causes centrifugal forces, which can be adjusted by moving the weights it create a vibration.

Mounting

• Foot-flange-Vibration-proof motor winding: Insulation class F enhances the safety under continuous operation conditions and at high ambient temperatures.
• Motor are tropical zed and designed for an extended voltage range.

Bearing & Lubrication

• The right type of bearing for every application guarantees long service life even continuous operation.
• All vibratory motors are permanently lubricated for normal operation.
• Large capacity motor can be re-lubricated for average application.
• Sp. Type of grease is used in vibratory motor.

Single phase motors are a fundamental component of various electrical systems, providing essential mechanical power across a diverse range of applications. These motors are designed by Anubhuti Power System to operate with single-phase alternating current (AC) power sources, making them suitable for use in residential, commercial, and industrial settings where three-phase power may not be readily available. Our single-phase motors offer an efficient solution for powering machinery, appliances, pumps, fans, and other equipment. Moreover, single-phase motors feature a stator with a primary winding that is energized by the single-phase power supply, generating a rotating magnetic field. This magnetic field interacts with conductive elements within the motor, such as rotor bars or coils, inducing currents that produce torque, thereby initiating motor rotation.
